Stainless steel wire mesh, specifically Type 304 stainless steel, is the most popular material for producing woven wire cloth. Also known as 18-8 because of its 18 percent chromium and eight percent nickel components, 304 is a basic stainless alloy that offers a combination of strength, corrosion resistance and affordability. Type 304 stainless steel is normally the best option when manufacturing grilles, vents or filters used for the general screening of liquids, powders, abrasives and solids.

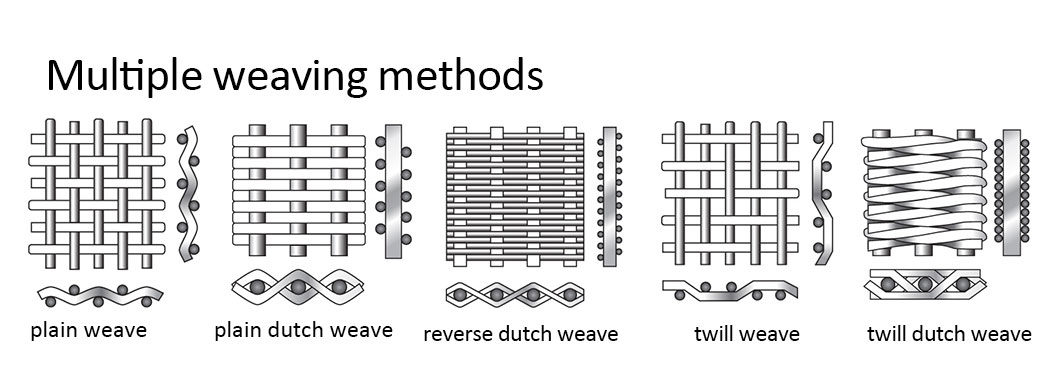

Weave type

Plain weave/double weave: This standard type of wire weaving produces a square opening, where warp threads alternately pass above and below weft threads at right angles.

Twill square: It is usually used in applications that need to handle heavy loads and fine filtration. Twill square woven wire mesh presents a unique parallel diagonal pattern.

Twill Dutch: Twill Dutch is famous for its super strength, which is achieved by filling a large number of metal wires in the target area of knitting. This woven wire cloth can also filter particles as small as two microns.

Reverse plain Dutch: Compared with plain Dutch or twill Dutch, this kind of wire weaving style is characterized by larger warp and less shut thread.

Our meshes mainly include wide range of fine product, including SS wire mesh for oil sand control screen, paper-making SS wire mesh, SS dutch weave filter cloth, wire mesh for battery, nickel wire mesh, bolting cloth,etc.

It also includes normal size woven wire mesh of stainless steel. Mesh range for ss wire mesh is from 1 mesh to 2800mesh, wire diameter between 0.02mm to 8mm is availabe; the width can reach 6mm.

Application Industry
· Sifting and sizing
· Architectural applications when aesthetics are important
· Infill panels that can be used for pedestrian partitions
· Filtration and separation
· Glare control
· RFIand EMI shielding
· Ventilation fan screens
· Handrails and safety guards
· Pest control and livestock cages
· Process screens and centrifuge screens
· Air and water filters
· Dewatering,solids/liquid control
· Waste treatment
· Filters and strainers for air, oil fuel and hydraulic systems
· Fuel cells and mud screens
· Separator screens and cathode screens
· Catalyst support grids made from bar grating with wire mesh overlay
