Cutable customized square hole stainless steel wire mesh
Our square hole mesh is crafted from premium stainless steel alloys:
304 Stainless Steel – 18% Cr, 8% Ni; excellent corrosion resistance in nitric acid (≤65%) and alkali solutions
316 / 316L Stainless Steel – 16–18% Cr, 10–14% Ni, 2–3% Mo; ~50% enhanced corrosion resistance vs. 304, withstanding saltwater, sulfuric acid, and marine/chemical environments
|
Parameter |
Range |
|---|---|
|
Aperture (Opening) |
0.5 mm – 25 mm (square) |
|
Wire Diameter |
0.3 mm – 3 mm |
|
Mesh Count |
2 – 100 mesh/inch |
|
Roll Length |
15 – 30 m (or custom-cut) |
|
Width |
0.5 m – 2 m (or as required) |
|
Edge Type |
Plain edge or selvage edge |
|
Temperature Resistance |
Up to 800 °C |
|
Open Area |
Up to 70% (varies by specification) |
Weaving and Fabrication
DXR square hole wire mesh is produced via two proven methods:
Woven Square Mesh
Precision looms interlace warp and weft wires under controlled tension to maintain accurate aperture; plain weave or twill weave available.
Welded Square Mesh
Spot-welded intersections provide high shear strength and minimal elongation, ideal for fencing and structural reinforcement.
Both forms can be cut, formed, and customized to meet project-specific dimensions, pore sizes, and specifications.
Key Performance Advantages
·Uniform aperture → stable filtration accuracy and consistent screening results
·Strong tensile strength → resists deformation under high-load, continuous operation
·Excellent corrosion & temperature resistance → performs reliably in acidic, alkaline, and high-heat environments
·Cut-to-size flexibility → supplied as rolls or custom-cut panels; edge treatments include folded hems and welded frames
·Easy maintenance → smooth surface is easy to clean, reducing blockages and downtime
Customization Options
·Material grade: 304 / 304L / 316 / 316L / 321 / 430 or other alloys on request
·Aperture shape: Square (standard), rectangular, or other geometries
·Surface finish: Natural, electropolished, or powder-coated
·Packaging: Waterproof paper wrapping + wooden case, or rolled on pallets
·Dimensions: Fully customizable to your drawing or sample
FAQ
It refers to square opening stainless steel woven/welded wire mesh that can be supplied in full rolls or precisely cut into custom panels according to your required length, width and drawing. Instead of buying a whole roll, you receive ready-to-use mesh pieces to minimize material waste and secondary cutting work.
DXR mainly supplies 304, 304L, 316 and 316L stainless steel square hole wire mesh.
304/304L: Suitable for general industrial screening, indoor & mild outdoor environments.
316/316L: Added molybdenum, superior corrosion resistance for marine, chemical, salt spray and acidic working conditions.
Other alloys (321, 430, duplex stainless steel) can be customized upon request.
Standard square aperture ranges from 0.5 mm to 25 mm. Wire diameter is available from 0.3 mm to 3.0 mm.
We support non-standard aperture and wire diameter combinations. Send us your required mesh count, opening size or technical drawing for quotation.
Both options are available:
Woven square wire mesh: Plain weave / twill weave, uniform opening, ideal for filtration, sieving, laboratory test sieves.
Welded square wire mesh: Fixed welding joints, high structural strength, widely used for fencing, machine guards, concrete reinforcement.
Please specify your application so we can recommend the proper manufacturing method.
Yes. DXR provides small sample pieces for material verification. Sample cost and international shipping freight will be confirmed before delivery. Sample fees can be refunded when you place a formal bulk order.

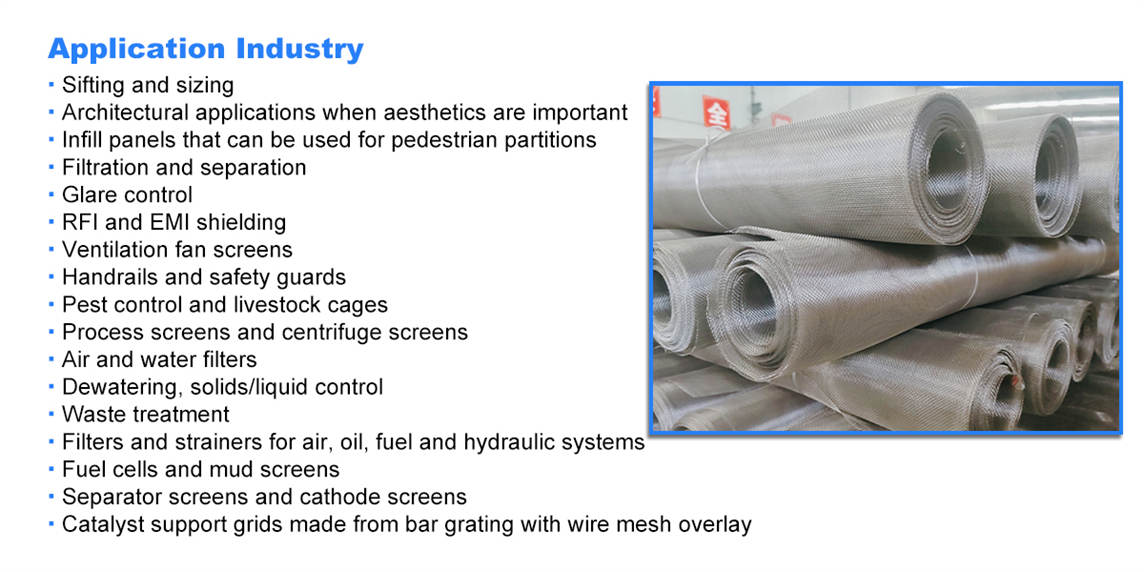

Industrial screening & sieving, liquid-solid filtration, mining & aggregate separation, security fencing, machine guarding, architectural cladding, decorative infill panels, food processing equipment, laboratory test sieves, concrete reinforcement, HVAC guards.
