filter element/anode mesh & basket/shielding mesh/mist eliminator weaved titanium wire mesh Manufacturer

Short Description:

Titanum wire mesh specification range:
Wire diameter: 0.03mm to 5 mm
Opening size: 0.1mm to 25mm.
Sheet size: width up to 2000mm, no limit to length
Titanium perforated metal specificaton range:
Opening size: 0.5mm to 50mm
Thickness: 0.1mm to 2mm
Sheet size: customized sizes available
Titanium expanded metal specification range:
Opening size(LWD): 0.2mm to 10mm
Thickness: 0.1mm to 2mm
Sheet size: customized sizes available

  • youtube01
  • twitter01
  • linkedin01
  • facebook01

Product Detail

Product Tags

Titanium Metal offers very high mechanical strength and outstanding corrosion resistance properties. It is widely used as the structural material in the various industrial applications. Titanium produces protective oxide layer that prevents the base metal from corrosive attack in the diverse application environments.

There are three types of titanium mesh by manufacturing method: weaved mesh, stamped mesh, and expanded mesh.
Titanium wire weaved mesh is weaved by commercial pure titanium metal wire, and the openings are regularly square. The wire diameter and opening size are mutual restrictions. Wire mesh with small openings is mostly used for filtering.
Stamped mesh is stamped from titanium sheets, the openings are regularly round, it also can be other required. Stamping dies are engaged in this product. The thickness and opening size are mutual restrictions.
Titanium sheet expanded mesh is expanded from titanium sheets, the openings are normally diamond. It is used as an anode in many fields.
Titanium mesh is usually coated with metal oxide and metal mixture oxide coated (MMO coated) such as RuO2/IrO2 coated anode, or platinized anode. These mesh anodes are used for cathode protection. Different coatings are used for different circumstances.

Strong resistance to acid and alkali.
Good anti-damping performance.
High tensile yield strength.
Low elasticity modulus.
Non-magnetic, non-toxic.
Good temperature stability & conductivity.

Titanium Mesh Applications:
Titanium mesh is used in many applications, such as seawater- shipbuilding, military, mechanical industry, chemical, petroleum, pharmaceutical, medicine, satellite, aerospace, environmental industry, electroplating, battery, surgery, filtration, chemical filter, mechanical filter, oil filter, electromagnetic shielding, electric, power, water desalination, heat exchanger, energy, paper industry, titanium electrode etc.

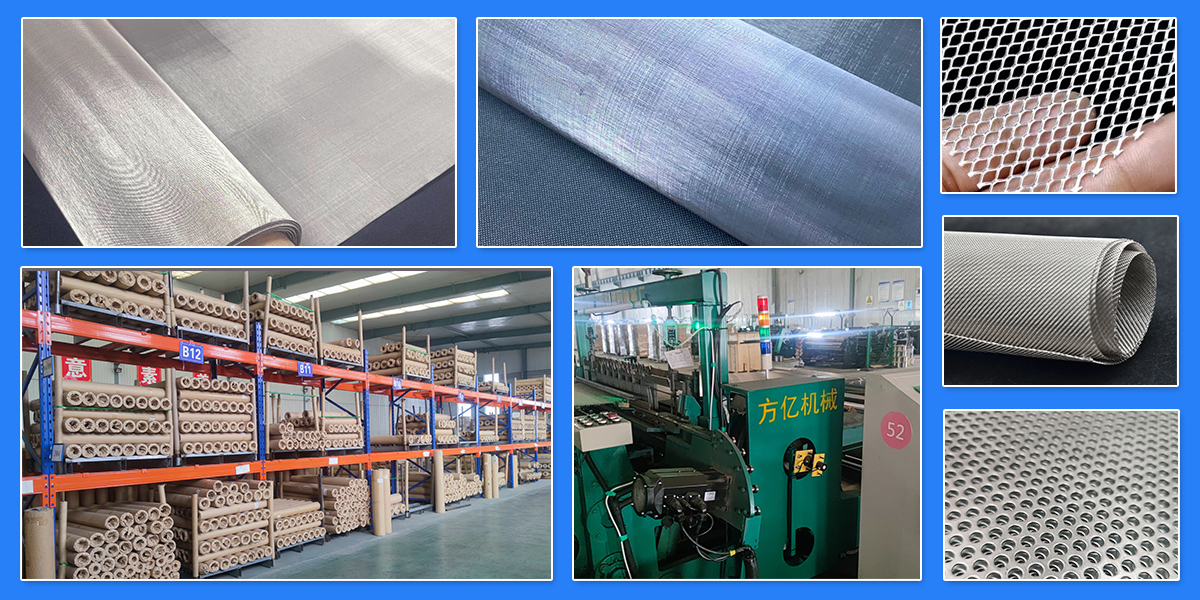

electrolytic cell titanium anode mesh 1

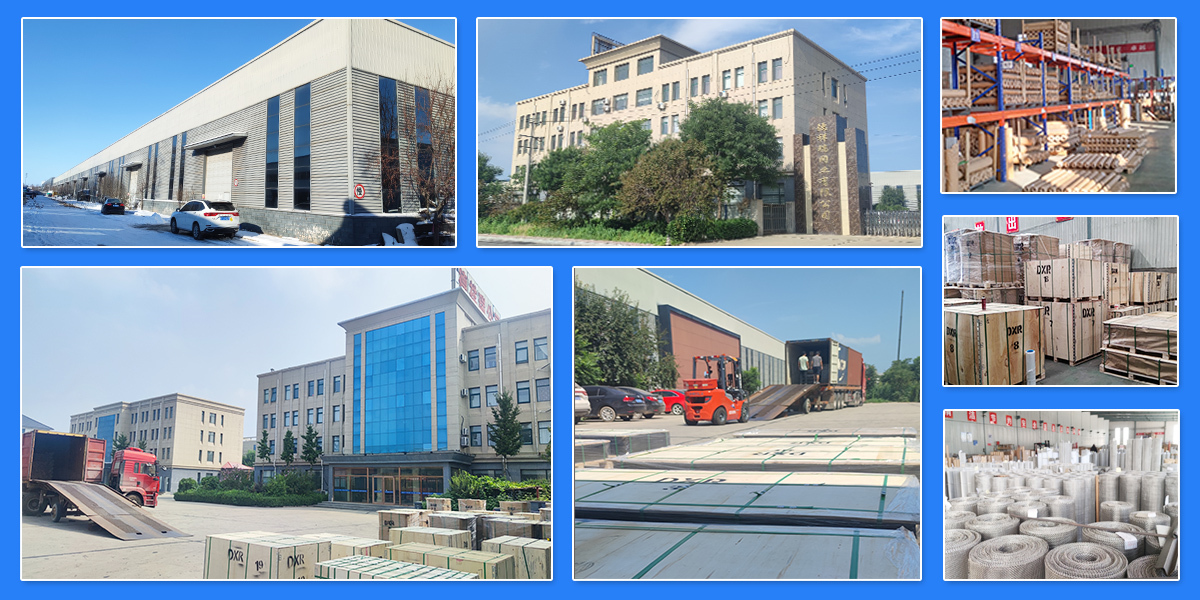

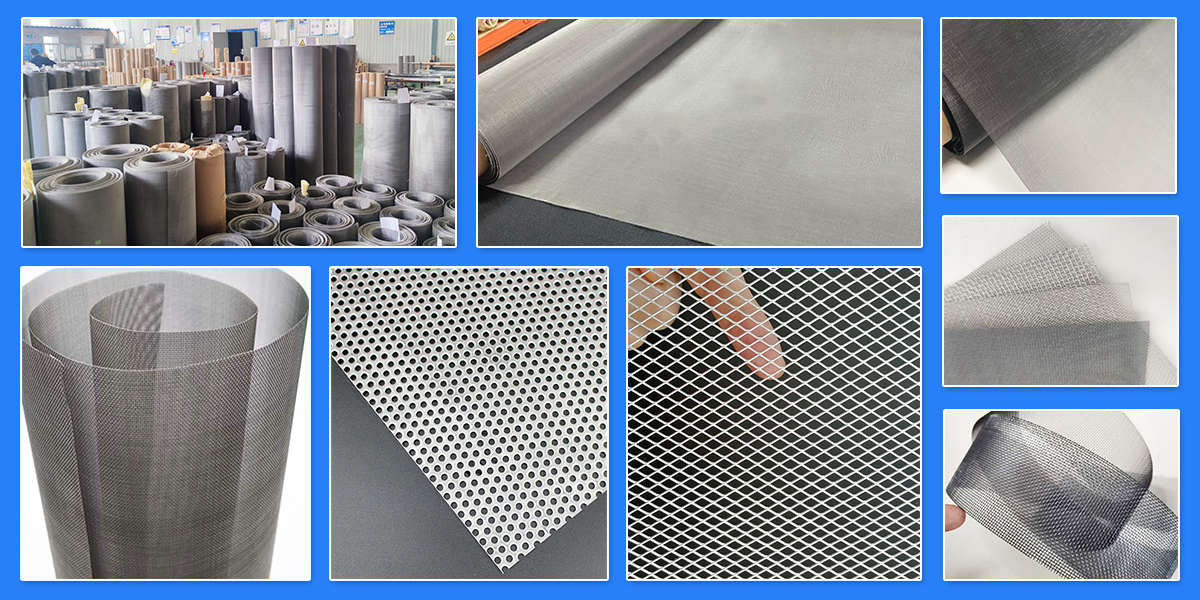

electrolytic cell titanium anode mesh2 electrolytic cell titanium anode mesh3 electrolytic cell titanium anode mesh4
