High definition China Full Automatic Stainless Steel Welded Wire Mesh Machine in Roll

Short Description:

Stainless Steel Wire Mesh can be divided into stainless steel plain-woven wire mesh, stainless steel twill woven wire mesh, stainless steel three Heddie wire mesh, stainless steel three Heddie wire mesh.


  • youtube01
  • twitter01
  • linkedin01
  • facebook01

Product Detail

Product Tags

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs for High definition China Full Automatic Stainless Steel Welded Wire Mesh Machine in Roll, We attend seriously to produce and behave with integrity, and with the favor of consumers at your house and abroad during the xxx industry.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs for China Wire Mesh Welding Machine, Welded Wire Mesh Machine, Our business activities and processes are engineered to make sure our customers have access to widest range of products and solutions with the shortest supply time lines. This achievement is made possible by our highly skilled and experienced team. We look for people who want to grow with us around the globe and stand out from the crowd. Now we have people who embrace tomorrow, have vision, love stretching their minds and heading far beyond what they thought was achievable.

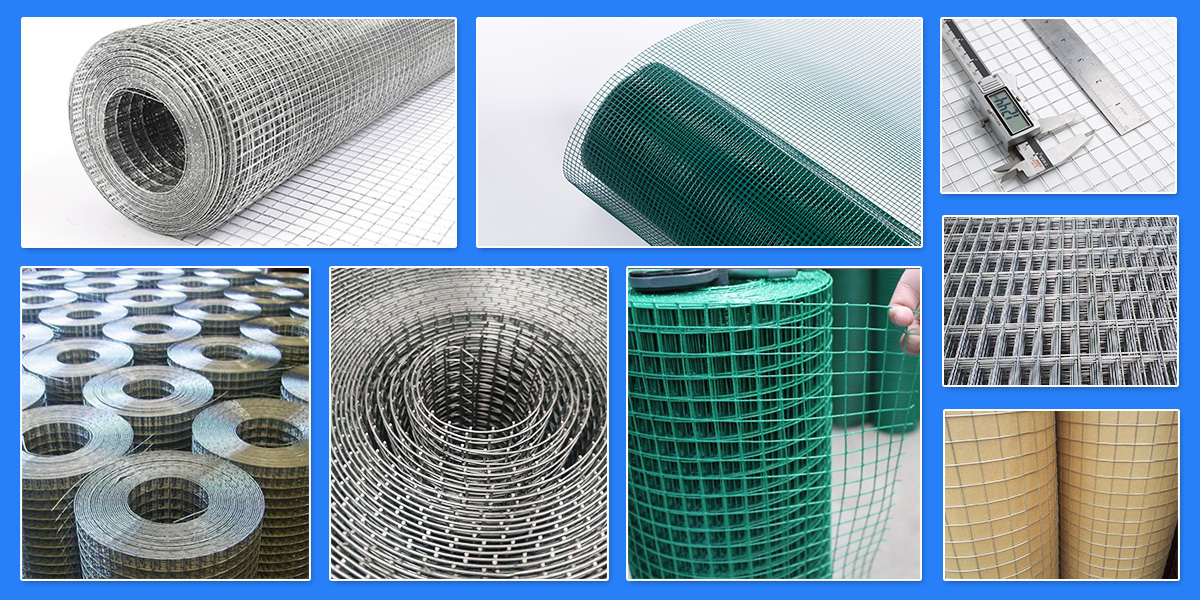

Stainless Steel Wire Mesh

Stainless Steel Wire Mesh can be divided into stainless steel plain-woven wire mesh, stainless steel twill woven wire mesh, stainless steel three Heddie wire mesh, stainless steel three Heddie wire mesh.

Stainless steel wire mesh products Net surface:

clean, smooth, small magnetic

Wire Material:

201,302,304,316,304L,316L,321

Packing:

Water-Proof ,Plastic Paper, Wooden Case ,Pallet

Stainless Steel Wire Mesh Product Features:

Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection.

Stainless steel wire mesh products uses:

Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration

Oil: oil purification, oil mud filtration, separation of impurities, etc.

Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification, and other drugs

Electronics: Circuit board framework, electronic components, battery acid, radiation module

Printing: Ink filtration, carbon filtration, purification, and other toners

Equipment: vibrating screen

Basic Info

Woven Type: Plain Weave and Twill Weave

Mesh: 1-635 mesh, To accurately

Wire Dia.: 0.022 mm – 3.5 mm, small deviation

Width: 190mm, 915mm, 1000mm, 1245mm to 1550mm

Length: 30m, 30.5m or cut to length minimum 2m

Hole shape: Square Hole

Wire Material: stainless steel wire

Mesh Surface: clean, smooth, small magnetic.

Packing: Water-Proof, Plastic Paper, Wooden Case, Pallet

Min.Order Quantity: 30 SQM

Delivery Detail: 3-10 days

Sample: Free Charge

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth

PLAIN AND TWILLED WEAVE

Mesh

Wire Diameter

Opening Width

Opening Area%

inches

mm

inches

mm

1mesh

0.135

3.5

0.865

21.97

74.8

2mesh

0.12

3

0.38

9.65

57.8

3mesh

0.08

2

0.253

6.42

57.6

4mesh

0.12

3

0.13

3.3

27

5mesh

0.08

2

0.12

3.04

36

6mesh

0.063

1.6

0.104

2.64

38.9

8mesh

0.063

1.6

0.062

1.57

24.6

10mesh

0.047

1.2

0.053

1.34

28.1

12mesh

0.041

1

0.042

1.06

25.4

14mesh

0.032

0.8

0.039

1.52

29.8

16mesh

0.032

0.8

0.031

0.78

23.8

18mesh

0.02

0.5

0.036

0.91

41.1

20mesh

0.023

0.58

0.027

0.68

29.2

24mesh

0.014

0.35

0.028

0.71

44.2

28mesh

0.01

0.25

0.026

0.66

51.8

30mesh

0.013

0.33

0.02

0.5

37.1

35mesh

0.012

0.3

0.017′

0.43

33.8

40mesh

0.014

0.35

0.011

0.28

19.3

50mesh

0.009

0.23

0.011

0.28

30.3

60mesh

0.0075

0.19

0.009

0.22

30.5

70mesh

0.0065

0.17

0.008

0.2

29.8

80mesh

0.007

0.18

0.006

0.15

19.4

90mesh

0.0055

0.14

0.006

0.15

25.4

100mesh

0.0045

0.11

0.006

0.15

30.3

120mesh

0.004

0.1

0.0043

0.11

26.6

130mesh

0.0034

0.0086

0.0043

0.11

31.2

150mesh

0.0026

0.066

0.0041

0.1

37.4

165mesh

0.0019

0.048

0.0041

0.1

44

180mesh

0.0023

0.058

0.0032

0.08

33.5

200mesh

0.002

0.05

0.003

0.076

36

220mesh

0.0019

0.048

0.0026

0.066

33

230mesh

0.0014

0.035

0.0028

0.071

46

250mesh

0.0016

0.04

0.0024

0.061

36

270mesh

0.0014

0.04

0.0022

0.055

38

300mesh

0.0012

0.03

0.0021

0.053

40.1

325mesh

0.0014

0.04

0.0017

0.043

30

400mesh

0.001

0.025

0.0015

0.038

36

500mesh

0.001

0.025

0.0011

0.028

25

635mesh

0.0009

0.022

0.0006

0.015

14.5
