High Purity Ultra Thin 99.98% Soft Pure Nickel201 Wire Mesh
Nickel wire woven mesh

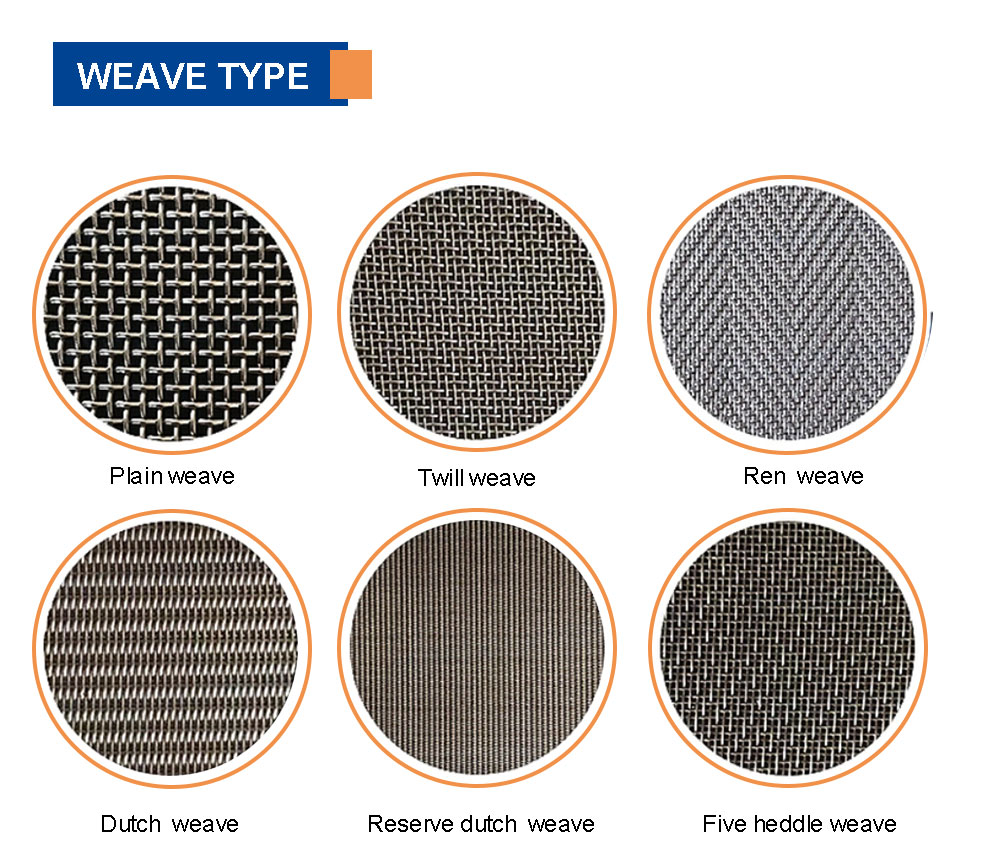

It is made of nickel wires interwoven by warp and weft, and the mesh is generally square.
Number of mesh: 1-200 mesh
Nickel wire material: Ni4, Ni6, nickel-chromium alloy wire, nickel-copper alloy wire.
Net width, net length and special specifications can be customized according to requirements.

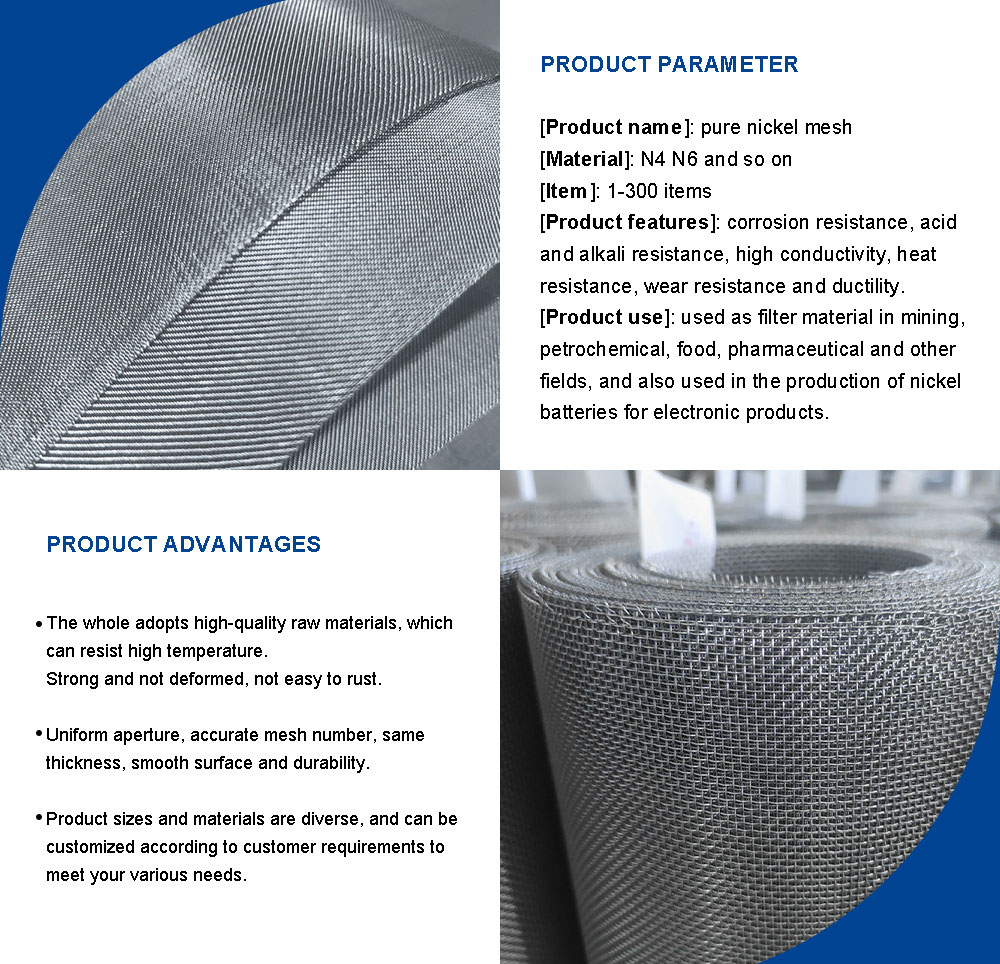

Nickel wire mesh is a filter mesh woven by nickel wires. The main common nickel wires are N4 and N6, and the main nickel content of N6 material is above 99.5%. The nickel wire mesh applied to N4 material can be completely replaced by the nickel wire mesh made of N6 material.
Nickel wire mesh has excellent corrosion resistance, acid and alkali resistance, and is mainly used for screening in strong acid and alkali environment, gas and liquid filtration and other media separation.
Common specifications
| Mesh | Wire Dia. (inches) | Wire Dia. (mm) | Opening (inches) |
Opening (mm) |
| 10 | 0.047 | 1 | 0.053 | 1.34 |
| 20 | 0.009 | 0.23 | 0.041 | 1.04 |
| 24 | 0.014 | 0.35 | 0.028 | 0.71 |
| 30 | 0.013 | 0.33 | 0.02 | 0.5 |
| 35 | 0.01 | 0.25 | 0.019 | 0.48 |
| 40 | 0.014 | 0.19 | 0.013 | 0.445 |
| 46 | 0.008 | 0.25 | 0.012 | 0.3 |
| 60 | 0.0075 | 0.19 | 0.009 | 0.22 |
| 70 | 0.0065 | 0.17 | 0.008 | 0.2 |
| 80 | 0.007 | 0.1 | 0.006 | 0.17 |
| 90 | 0.0055 | 0.14 | 0.006 | 0.15 |
| 100 | 0.0045 | 0.11 | 0.006 | 0.15 |
| 120 | 0.004 | 0.1 | 0.0043 | 0.11 |
| 130 | 0.0034 | 0.0086 | 0.0043 | 0.11 |
| 150 | 0.0026 | 0.066 | 0.0041 | 0.1 |
| 165 | 0.0019 | 0.048 | 0.0041 | 0.1 |
| 180 | 0.0023 | 0.058 | 0.0032 | 0.08 |
| 200 | 0.0016 | 0.04 | 0.0035 | 0.089 |
| 220 | 0.0019 | 0.048 | 0.0026 | 0.066 |
| 230 | 0.0014 | 0.035 | 0.0028 | 0.071 |
| 250 | 0.0016 | 0.04 | 0.0024 | 0.061 |
| 270 | 0.0014 | 0.04 | 0.0022 | 0.055 |
| 300 | 0.0012 | 0.03 | 0.0021 | 0.053 |
| 325 | 0.0014 | 0.04 | 0.0017 | 0.043 |
| 400 | 0.001 | 0.025 | 0.0015 | 0.038 |
Some of the key properties and features of pure nickel wire mesh are:
- High heat resistance: Pure nickel wire mesh can withstand temperatures of up to 1200°C, making it suitable for high-temperature environments such as furnaces, chemical reactors, and aerospace applications.
- Corrosion resistance: Pure nickel wire mesh is highly resistant to corrosion from acids, alkalis, and other harsh chemicals, making it ideal for use in chemical processing plants, oil refineries, and desalination plants.
- Durability: Pure nickel wire mesh is strong and durable, with good mechanical properties that ensure it retains its shape and provides long-lasting performance.
- Good conductivity: Pure nickel wire mesh has good electrical conductivity, making it useful for applications in the electronics industry.
FAQ:
1.How long has DXR inc. been in business and where are you located?
DXR has been in business since 1988.We are headquartered in NO.18,Jing Si road.Anping Industrial Park, Hebei Province, China.Our customers are spread over more than 50 countries and regions.
2.What are your business hours?
Normal business hours are 8:00 AM to 6:00 PM Beijing Time Monday through Saturday.We also have 24/7 fax, email, and voice mail services.
3.What is your minimum order?
Without question, we do our best to maintain one of the lowest minimum order amounts in theB2B industry. 1 ROLL,30 SQM，1M x 30M.
4.Can l get a sample?
Most of our products are free to send samples, some products require you to pay the freight
5.Can l get a special mesh that l don’t see listed on your website?
Yes, many items are available as a special order. Generally, these special orders subject to the same minimum order of 1 ROLL,30 SQM,1M x 30M.Contact us with your special requirements.
6.l have no idea what mesh l need.How do l find it?
Our website contains considerable technical information and photographs to assist you and we will attempt to supply you with the wire mesh you specify.However, we cannot recommend a particular wire mesh for specialized applications. We need to be given a specific mesh description or sample in order to proceed. If you are still uncertain, we suggest that you contact an engineering consultant in your field.Another possibility would be for you to purchase samples from us to determine their suitability.
7.l have a sample of the mesh l need but l don’t know how to describe it,can you help me?
Yes, send us the sample and we will contact you with the results of our examination.
8.Where will my order ship from?
Your orders will ship out of Tianjin port.
