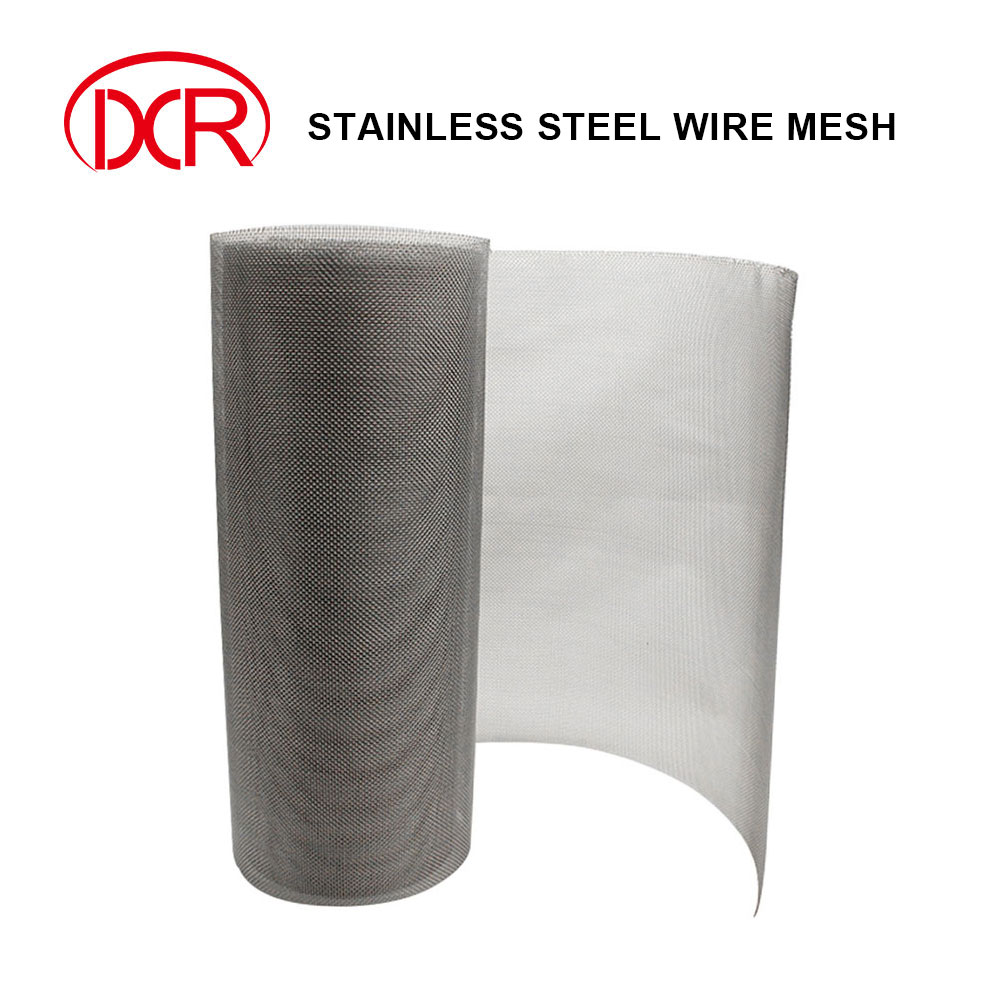

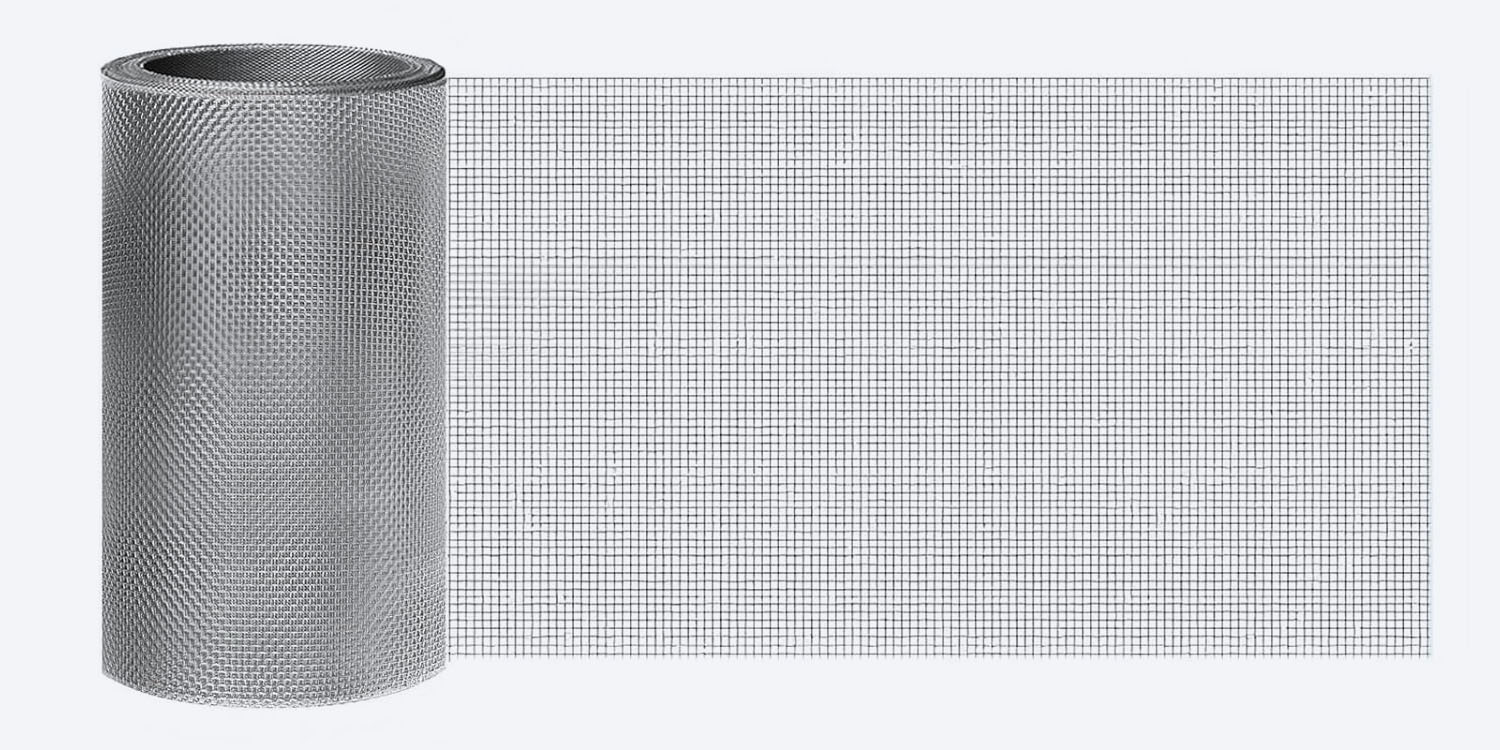

304 316 210 stainless steel wire mesh
304 316 210 stainless steel wire mesh
Our 201, 304, and 316 stainless steel wire mesh is designed for high-precision filtration, durability, and long-lasting performance. Suitable for industrial, chemical, and food processing applications, it ensures consistent quality and reliability.
Technical Specification
| Material | Mesh Size | Micron Size | Wire Diameter | Roll Width |
|---|---|---|---|---|
| 201 SS | 10–200 | 5–120 | 0.02–0.5 mm | 0.5–2 m |
| 304 SS | 10–200 | 5–120 | 0.02–0.5 mm | 0.5–2 m |
| 316 SS | 10–200 | 5–120 | 0.02–0.5 mm | 0.5–2 m |

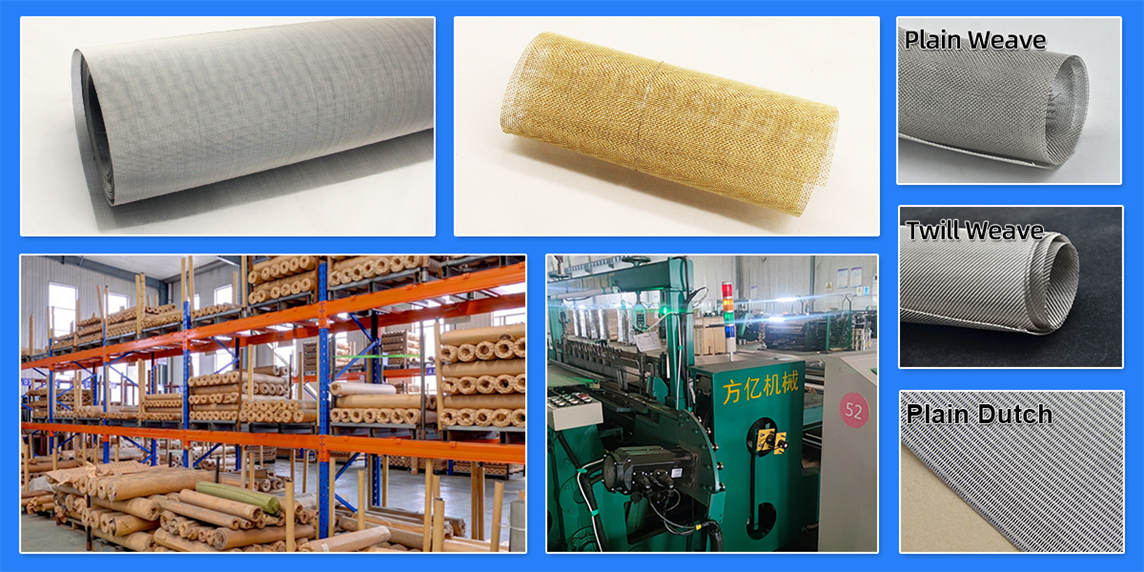

Plain weave is the most common and widely used weaving method for stainless steel wire mesh. In this structure, each warp wire alternately passes over and under each weft wire, forming a simple and uniform square mesh pattern.
This type of weave provides good stability, accurate mesh openings and a smooth surface. Because of its balanced structure, plain weave mesh is suitable for general filtration and sieving applications.
Features
- Uniform and precise mesh openings
- Stable and strong structure
- Smooth mesh surface
- Easy to clean and maintain
Typical Applications
- Industrial filtration
- Liquid filtration
- Particle sieving
- Food processing filtration
- Laboratory filtration
Twill weave is produced when each warp wire passes over two weft wires and then under two weft wires. This pattern creates a diagonal structure that allows the mesh to use thicker wires while still maintaining a high mesh count.
Compared with plain weave, twill weave wire mesh offers higher strength and better wear resistance. It is commonly used for heavy-duty filtration or applications that require stronger mesh structures.
Features
- Higher strength and durability
- Better wear resistance
- Suitable for finer mesh counts with thicker wires
- Stable filtration performance
Typical Applications
- Industrial filtration systems
- Heavy-duty screening
- Plastic and polymer filtration
- Chemical processing filtration
Dutch weave wire mesh is designed specifically for filtration applications. In this weaving structure, the warp wires are relatively thicker while the weft wires are finer and closely spaced, forming a dense filtration layer.
Unlike plain or twill weave meshes, Dutch weave does not form square openings. Instead, it creates a compact structure that offers very high filtration accuracy and excellent particle retention capability.
Features
- High filtration precision
- Strong mechanical strength
- High pressure resistance
- Ideal for fine filtration
Typical Applications
- Oil and fuel filtration
- Chemical filtration
- Hydraulic systems
- Polymer extrusion filtration
High-precision industrial filtration
The features of stainless steel wire mesh
- High Precision: Accurately woven wire mesh for fine filtration
- Corrosion Resistant: 304 and 316 stainless steel provide excellent corrosion resistance; 201 is cost-effective for general industrial use

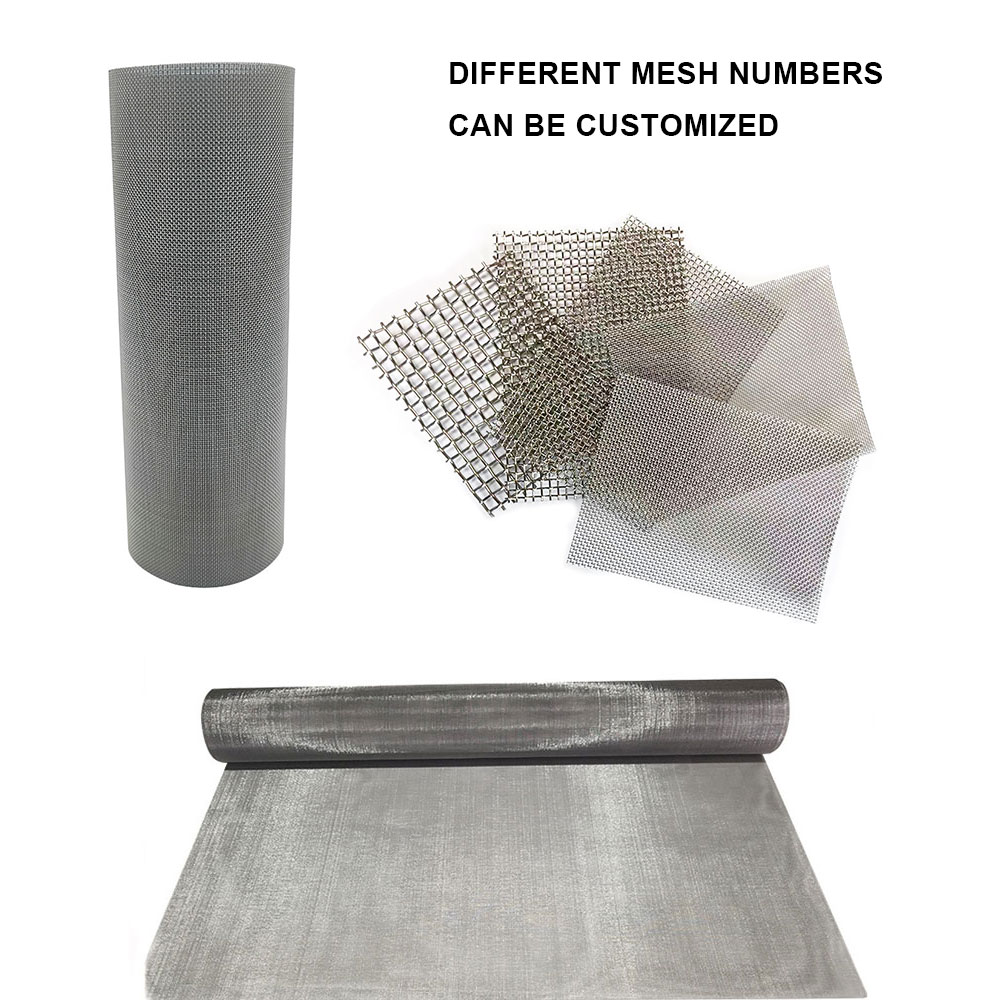

- Customizable Sizes: Micron and mesh sizes can be tailored to your application
- Industrial Versatility: Perfect for chemical, food, pharmaceutical, and laboratory use
The application of stainless steel wire mesh
- Industrial Filtration: Remove impurities in liquids and gases
- Food & Beverage Processing: Ensure product purity and safety
- Chemical Processing: Resistant to corrosion and chemical reactions (especially 316)
- Laboratory Use: Precise particle separation for research and testing
- General Applications: 201 SS provides a cost-effective option for less corrosive environments
Quality Control
Strict wire diameter inspection
Mesh count accuracy testing
Tensile strength testing
Surface quality inspection

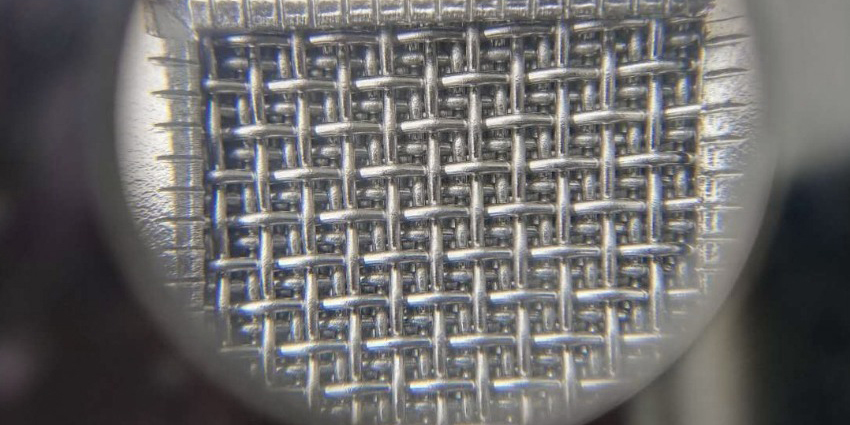

Stainless Steel Wire Mesh Features
✔ High filtration precision with uniform mesh openings
✔ Excellent corrosion resistance in chemical environments
✔ Strong mechanical strength and durability
✔ High temperature resistance
✔ Smooth mesh surface for stable filtration performance
✔ Long service life and reusable structure
Packaging and transportation
Custom packaging is also available according to customer requirements.
Moisture-proof paper wrapping
Plastic film protection
Wooden pallet or carton packing
Sea freight and air freight supported
Why Choose Us
✔ 30+ years wire mesh manufacturing experience
✔ Professional mining screening mesh production
✔ OEM and customized design service
✔ Fast production and delivery
✔ Exported to South America, Europe and Middle East

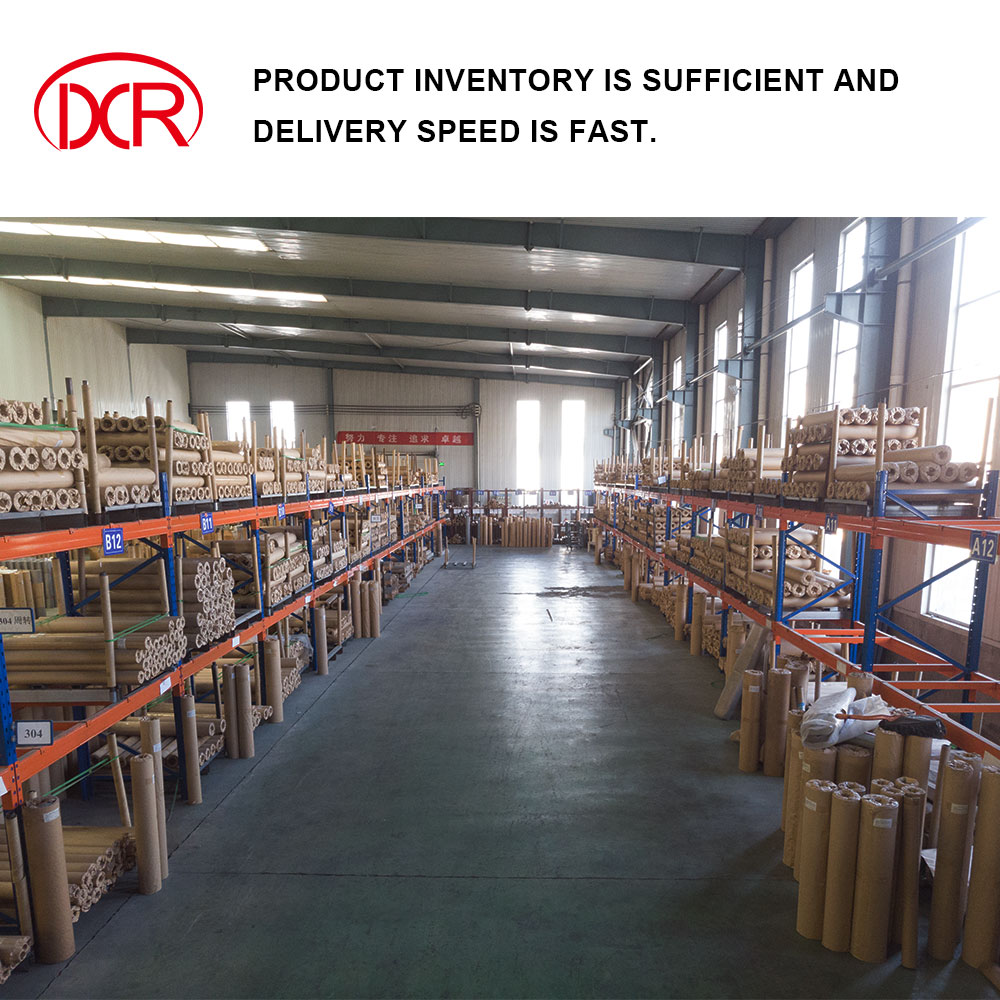

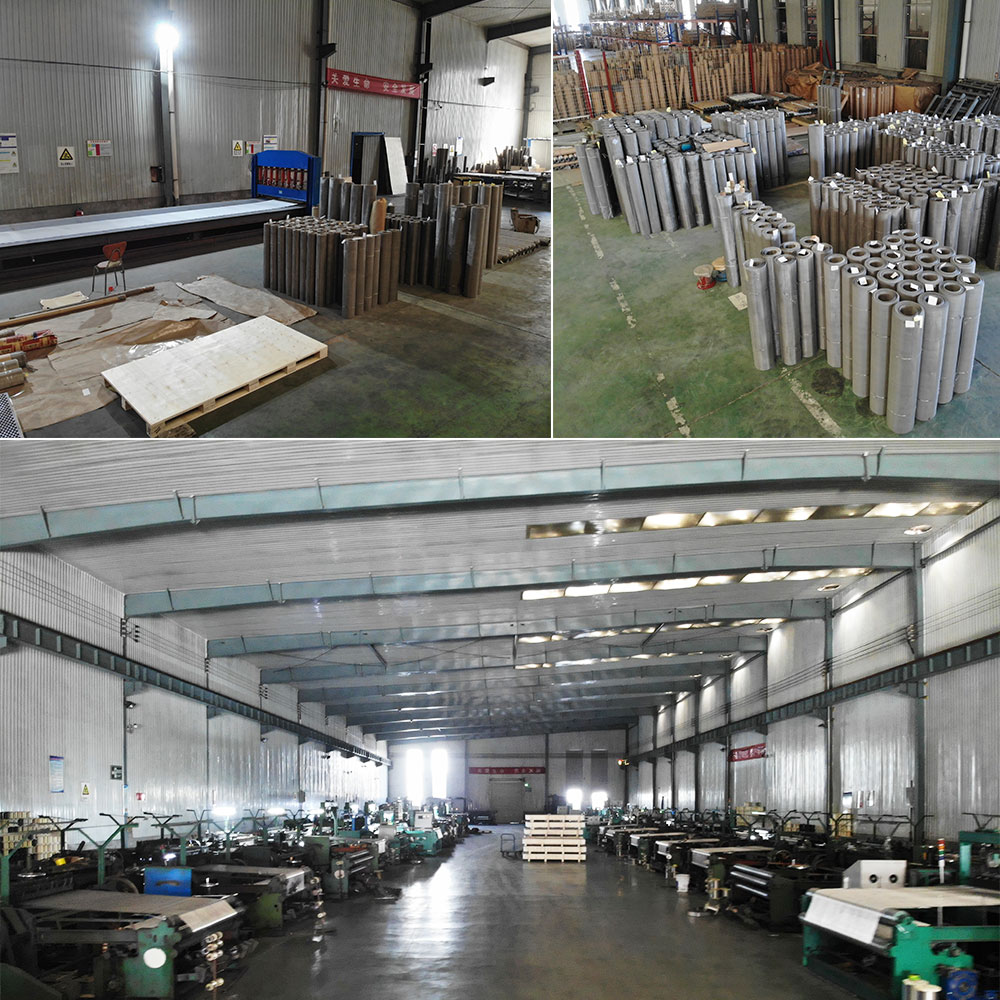

Inside The Factory
Workshop
Production Machine
How To Order
Please send us your specification, Our technical team will reply within 12 hours. Including:
FAQ
- 201 Stainless Steel: Cost-effective, suitable for general industrial use, moderate corrosion resistance
- 304 Stainless Steel: Good corrosion resistance, suitable for most industrial and food applications
- 316 Stainless Steel: Contains molybdenum, excellent corrosion resistance in chemical and marine environments
Yes, we can provide wire mesh ranging from 5 to 120 microns according to your requirements.
Chemical, food, pharmaceutical, water treatment, laboratory research, and general industrial applications.
Mesh sizes range from 10 to 200 mesh, and we can also provide micron sizes from 5 to 120 microns based on your filtration requirements.
Yes, we can provide custom rolls, sheets, or cut-to-size pieces to fit your specific application.
For harsh chemical, marine, or high-moisture environments, 316 stainless steel is recommended due to its superior corrosion resistance.
