stainless steel expanded metal mesh

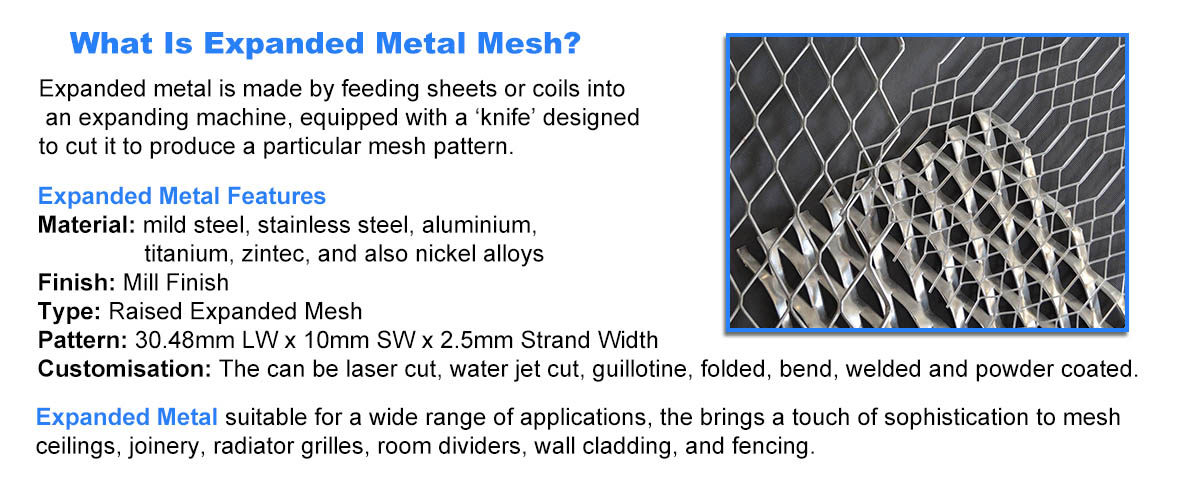

Expanded Metal Screen is the most practical and economical way to assure strength, safety, and anon-skid surface. Expanded metal grating is ideal for use on plant runways, working platforms, and catwalks, as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.
Material: Aluminum, Stainless Steel, Low Carbon Aluminum, Low caron steel, Galvanized steel, stainless steel, Copper, titanium etc.
LWD: MAX 300mm
SWD: MAX 120mm
Stem: 0.5mm-8mm
Sheet width: MAX 3.4mm
Thickness: 0.5mm – 14mm

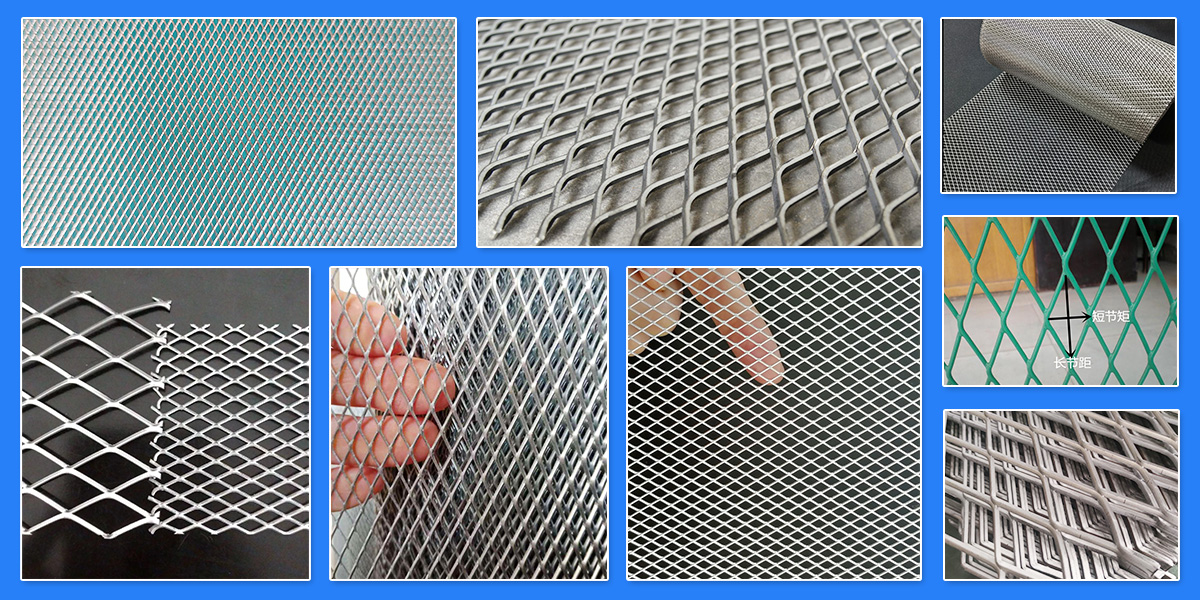

Classification
- Small expanded wire mesh
- Medium expanded wire mesh
- Heavy expanded wire mesh
- Diamond expanded wire mesh
- Hexagonal expanded wire mesh
- Special expanded
Applications:
Suitable for a wide range of applications, the brings a touch of sophistication to mesh ceilings, joinery, radiator grilles, room dividers, wall cladding, and fencing.
| Expanded Metal Mesh | |||||
| LWD (mm) | SWD (mm) | Strand Width | Strand Gauge | % Free Area | Approx. Kg/m2 |
| 3.8 | 2.1 | 0.8 | 0.6 | 46 | 2.1 |
| 6.05 | 3.38 | 0.5 | 0.8 | 50 | 2.1 |
| 10.24 | 5.84 | 0.5 | 0.8 | 75 | 1.2 |
| 10.24 | 5.84 | 0.9 | 1.2 | 65 | 3.2 |
| 14.2 | 4.8 | 1.8 | 0.9 | 52 | 3.3 |
| 23.2 | 5.8 | 3.2 | 1.5 | 43 | 6.3 |
| 24.4 | 7.1 | 2.4 | 1.1 | 57 | 3.4 |
| 32.7 | 10.9 | 3.2 | 1.5 | 59 | 4 |
| 33.5 | 12.4 | 2.3 | 1.1 | 71 | 2.5 |
| 39.1 | 18.3 | 4.7 | 2.7 | 60 | 7.6 |
| 42.9 | 14.2 | 4.6 | 2.7 | 58 | 8.6 |
| 43.2 | 17.08 | 3.2 | 1.5 | 69 | 3.2 |
| 69.8 | 37.1 | 5.5 | 2.1 | 75 | 3.9 |
