Heavy Duty Expanded Metal Mesh Panel for Wholesale Supply
Expanded Metal Mesh

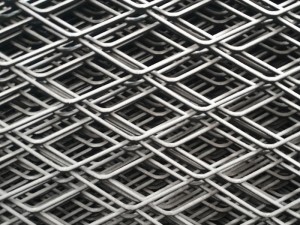

Expanded Metal Mesh is manufactured by stretching a single metal sheet into a uniform diamond-shaped pattern without welding or waste.
Compared with welded or perforated metal, it offers higher strength-to-weight ratio, better airflow, and lower production cost, making it ideal for industrial, architectural, and filtration applications.
Technical Specification
| Material | Carbon Steel, Stainless Steel (304, 316L), Aluminum, Galvanized |
| Thickness | 0.4 mm - 8.0 mm (Custom gauges available). |
| Mesh Aperture | SWD (Short Way of Diamond): 3 mm – 100 mm; LWD (Long Way of Diamond): 6 mm – 200 mm. |
| Sheet/Coil Size | Standard: 1200x2400mm, 1220x2440mm, 1525x4000mm. Custom sizes and coils up to 1220mm width available. |
| Surface Treatment | Pre-Galvanized, Hot-Dipped Galvanized, Anodized, Powder Coated (RAL Colors), PVC Dipped. |
| Open Area | Up to 80% (Varies by mesh pattern). |
| Tensile Strength | Up to 827 MPa (Stainless Steel); Up to 300 MPa (Aluminum Alloy). |

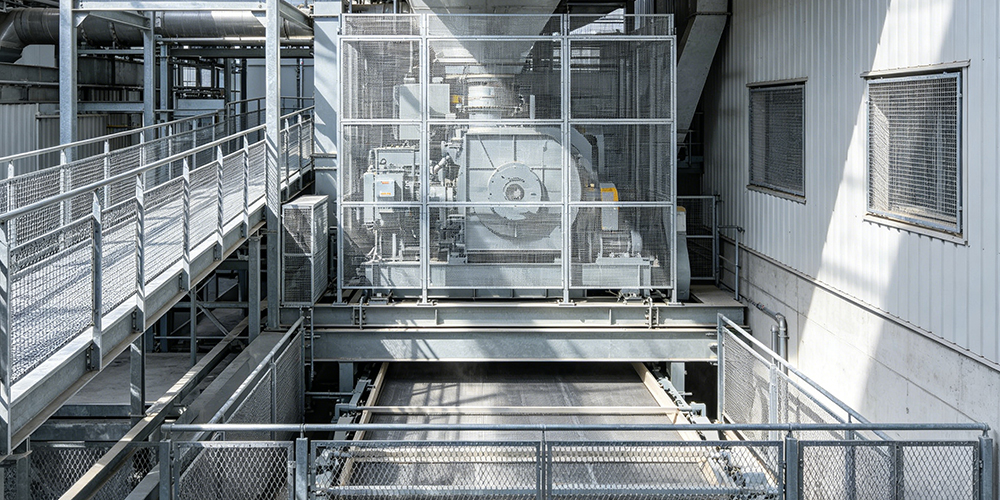

Application of Expanded Metal Mesh
- Industrial platforms & walkways
- Machine protection covers
- Building facade & decoration
- Filtration & screening
- Security fencing
Why choose our expanded metal mesh?
Stretch mesh is made from a single piece of metal, without joints or welds, resulting in high load-bearing capacity and a longer service life.
Compared to welded mesh, structural integrity is increased by 15%–30% under the same thickness conditions.
The diamond-shaped opening design provides exceptionally high openness (typically 50%–80%), resulting in better ventilation, reduced airflow resistance, and highly efficient filtration.
Widely used in HVAC systems, mechanical safety devices, and the filtration industry.
Stretch mesh maintains strength while reducing material usage, facilitating transportation, lowering installation costs, and reducing structural load.
Compared to solid panels, it can reduce weight by 30%–60%.
The raised type expanded metal mesh surface has a natural texture.
Improves walkway safety; suitable for platforms and stairs.
There is no material waste during the production process; material utilization is close to 100%, unlike perforated metal mesh which generates waste.
Low raw material costs allow for more favorable prices for bulk buyers.
Why Choose Us
✔ 30+ years wire mesh manufacturing experience
✔ Professional mining screening mesh production
✔ OEM and customized design service
✔ Fast production and delivery
✔ Exported to South America, Europe and Middle East
Inside The Factory
Workshop
Production Machine
How To Order
Please send us your specification, Our technical team will reply within 12 hours. Including:
FAQ
As a direct factory, we offer flexible MOQs. For standard stock sizes, the MOQ is 100 sheets. For customized aperture and strand specifications, the MOQ is 500 kg due to tooling setup requirements.
Absolutely. We regularly facilitate SGS, BV, and TUV inspections at the buyer‘s request. We also provide internal Material Test Reports (MTRs) detailing tensile strength and coating thickness compliance with ASTM F1267.
Expanded metal has no waste and higher strength, while perforated metal offers more precise hole patterns.
Yes, we support full customization based on your drawings or requirements.
