Stainless Steel Wire Cloth for Industrial Filtration Applications
Industrial Stainless Steel Wire Cloth Manufacturer
What Is Stainless Steel Wire Cloth?
Stainless steel wire cloth is a precision woven metal filtration material manufactured from stainless steel wires. It consists of evenly distributed warp and weft wires that create controlled openings for filtration, screening and separation.
Compared with perforated sheets or expanded metal, woven wire cloth provides higher open area, precise filtration accuracy and flexible customization options.
Why Use Stainless Steel Wire Cloth for Filtration?
Excellent Corrosion Resistance
304, 316 and 316L stainless steel provide reliable corrosion resistance in different industrial environments.
Precise Filtration Accuracy
Controlled mesh openings allow accurate separation of particles, powders and liquids.
High Mechanical Strength
Woven structure provides good tensile strength and durability.
Temperature Resistance
Suitable for high-temperature filtration and screening applications.
Easy Cleaning
Smooth stainless steel surface allows washing, ultrasonic cleaning and repeated use.
Stainless Steel Wire Cloth vs Other Filter Materials
| Material | Advantages | Limitations | Suitable Applications |
|---|---|---|---|
| Stainless Steel Wire Cloth | Precise opening, corrosion resistance, reusable | Higher initial cost | Industrial filtration |
| Plastic Filter Mesh | Lightweight, low cost | Limited temperature resistance | Water filtration |
| Perforated Metal Sheet | Strong structure | Less filtration precision | Coarse screening |
| Expanded Metal | High strength | Larger openings | Protection and separation |
Which Stainless Steel Grade Should I Choose?
| Grade | Features | Recommended Applications |
|---|---|---|
| 304 | General corrosion resistance, economical | Food processing, general filtration, dry environments |
| 304L | Low carbon, better welding performance | Fabricated filter components |
| 316 | Better chloride resistance | Chemical, marine, pharmaceutical |
| 316L | Low carbon + corrosion resistance | High purity filtration systems |
Quick Selection Rule
Choose 304 stainless steel wire cloth when:
✓ Normal industrial environment
✓ Cost-sensitive projects
✓ Food processing
✓ General screening
Choose 316/316L stainless steel wire cloth when:
✓ Chemical exposure
✓ Salt water environment
✓ Pharmaceutical filtration
✓ High corrosion resistance required
Is Stainless Steel Wire Cloth Suitable for Food Processing?
| 304/316 stainless steel | corrosion resistance | easy cleaning | reusable |
Which Mesh Count Should I Choose?
| Mesh Count | Typical Use |
|---|---|
| 20-60 mesh | Coarse screening |
| 80-150 mesh | Industrial filtration |
| 200-325 mesh | Fine particle filtration |
| 400+ mesh | Precision filtration |
How to Select Weave Type?
| Plain Weave | Twill Weave | Dutch Weave |
| •General filtration •Sieving •Food processing |
•Higher strength •Fine filtration |
•High precision filtration •Hydraulic filtration •Polymer filtration |
Filtration Applications
| Oil & Hydraulic Filtration | Chemical Industry | Food Grade Filtration | Pharmaceutical Industry | Battery Material Screening |
| •Hydraulic oil •Fuel filtration •Lubricant filtration |
•Chemical separation •Catalyst filtration |
•Beverage filtration •Powder screening •Food processing |
•High cleanliness •Fine particle control |
•Lithium battery powder •Electrode material screening |
Quality Control
Strict wire diameter inspection
Mesh count accuracy testing
Tensile strength testing
Surface quality inspection
What Standards Apply to Stainless Steel Wire Cloth?
ASTM Standards
•ASTM E2016
Industrial Woven Wire Cloth Specification
•ASTM A580/A580M
Stainless Steel Wire Specification
ISO Standards
•ISO 9044
Industrial Wire Cloth Technical Requirements
Custom Processing Service
We support professional deep processing of 904L super stainless steel mesh, including fixed-size cutting, filter disc customization, filter tube welding, punching, edge sealing and special-shaped bending.
According to customer industrial equipment parameters and drawings, we provide exclusive customized filtration solutions for extreme chemical industries.
Packaging and transportation
Custom packaging is also available according to customer requirements.
Moisture-proof paper wrapping
Plastic film protection
Wooden pallet or carton packing
Sea freight and air freight supported
Application Cases
Case 1: Hydraulic Oil Filtration
Problem:
High precision particle removal required
Solution:
316 stainless steel Dutch weave wire cloth
Result:
Stable filtration performance
Case 2: Battery Powder Screening
Problem:
Need accurate particle size classification
Solution:
Fine stainless steel woven wire cloth
Result:
Consistent powder separation
Why Choose Us
✔ 30+ years wire mesh manufacturing experience
✔ Professional mining screening mesh production
✔ OEM and customized design service
✔ Fast production and delivery
✔ Exported to South America, Europe and Middle East

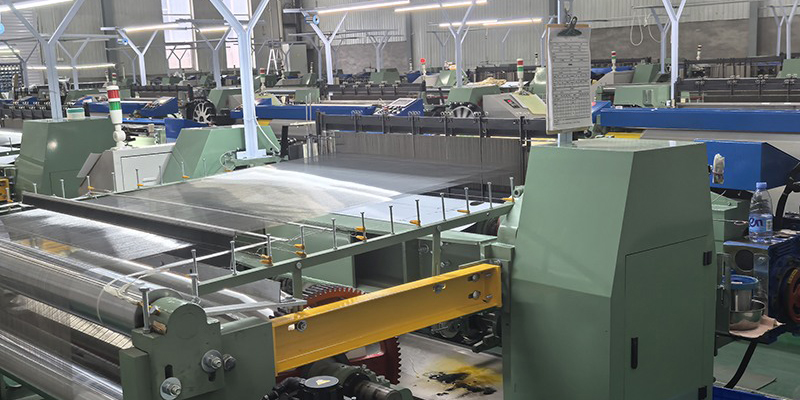

Inside The Factory
Workshop
Production Machine
How To Order
Please send us your specification, Our technical team will reply within 12 hours. Including:
FAQ
filtration, screening, separation
Depends on environment.
304:
general applications
316:
chemical and corrosive environments
Consider:
•Material
•Mesh count
•Wire diameter
•Opening size
•Application
Yes.
DXR provides customized rolls, sheets and filter components.
