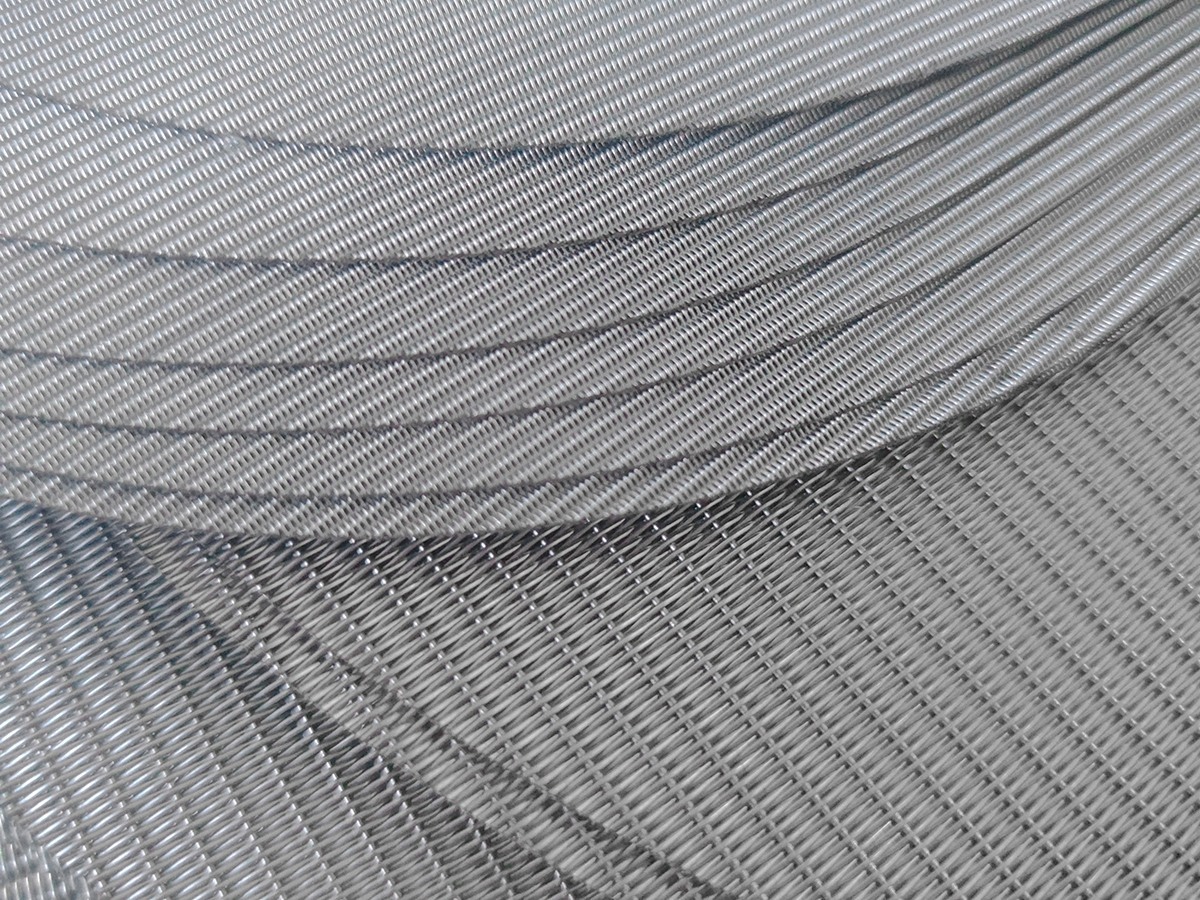

Dutch weave wire mesh is manufactured using different wire diameters and wire arrangements in the warp and weft directions. This produces a dense woven structure with narrow, tortuous flow paths rather than the regular square openings commonly found in plain weave wire mesh.
In liquid filtration, particle retention depends on the woven structure, the characteristics of the particles, the liquid properties and the operating conditions. For this reason, Dutch weave filter cloth should be selected according to the required separation performance rather than mesh count alone.
It can be considered for filtration processes where conventional square-opening wire mesh does not meet the required particle retention or filtration requirements.
| Weave Type | Typical Filtration Rating (Reference) | Structural Characteristics | Typical Applications |
| Plain Dutch Weave | Approximately 5–200 μm, depending on specification | Coarse warp wires and finer weft wires create a dense filtration structure with relatively straight warp wires. | General industrial liquid filtration, chemical process filtration, hydraulic fluid filtration, and solid particle separation. |
| Twill Dutch Weave | Approximately 2–100 μm, depending on specification | The twill arrangement allows finer wires to be woven into a dense structure, supporting finer filtration requirements. | Fine chemical liquid filtration, polymer filtration, oil filtration, and applications requiring finer particle retention. |
| Reverse Dutch Weave | Approximately 5–200 μm, depending on specification | The wire arrangement differs from conventional Dutch weave, with finer warp wires and coarser weft wires. It is commonly selected for suitable pressure filtration and filter-support configurations. | Pressure filtration systems, polymer melt filtration, extrusion filtration, and selected industrial process filtration applications. |
Chemical processing systems may involve acids, alkalis, solvents, process additives, suspensions and other liquids containing unwanted solid particles. The filter medium must be compatible with the liquid while providing an appropriate balance between particle retention, flow capacity and service life.
Dutch weave wire mesh can be used as a filtration medium or as part of a fabricated filter element, depending on the equipment design.
Typical application areas include:
Chemical process liquid filtration and purification
Removal of suspended solids from compatible process liquids
Pre-filtration before downstream processing
Industrial liquid circulation and filtration systems
Filtration elements used in selected chemical processing equipment
Custom filter components requiring dense woven wire cloth
The suitability of a specific mesh depends on the chemical composition, concentration, temperature, pressure, particle characteristics and cleaning method of the actual process.

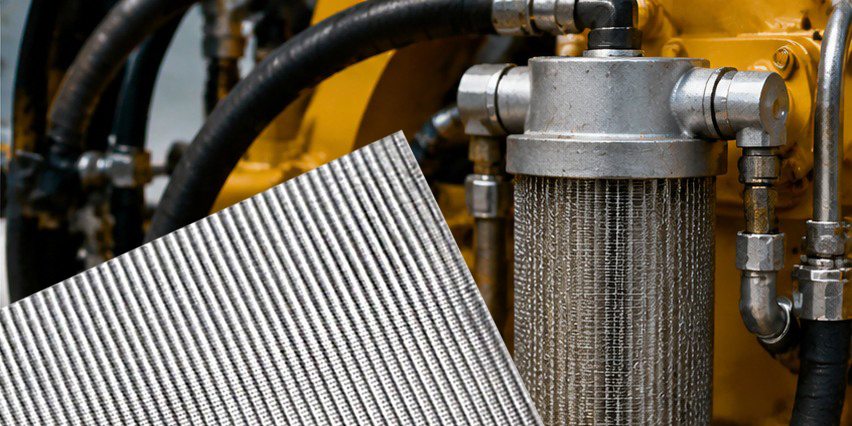

Some industrial systems require a filtration stage to remove selected solid contaminants before liquid enters downstream equipment. Dutch weave mesh may be suitable when its verified particle-retention characteristics match the process requirements.
In recirculating processes, the filter medium may be exposed repeatedly to the process liquid and accumulated contaminants. Selection should consider not only initial filtration performance but also cleaning frequency, mechanical support and expected operating conditions.
For manufacturers of industrial filters, Dutch weave wire cloth can serve as a material for further fabrication into application-specific filtration components, where the weave, material and dimensions are suitable for the intended design.

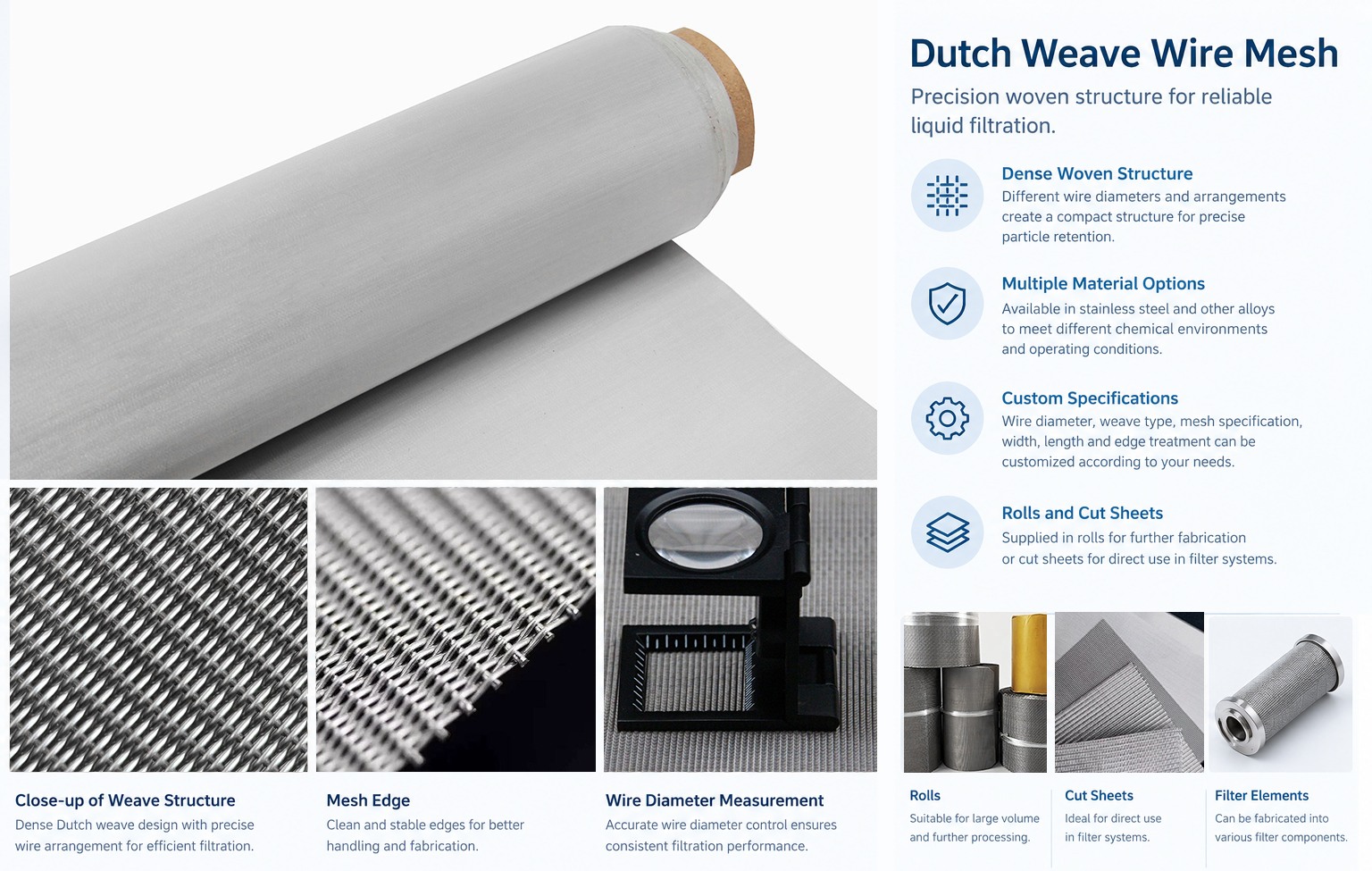

Dutch weave wire mesh is a woven filtration cloth made with different wire arrangements and wire diameters in the warp and weft directions. Its dense structure is used in applications where controlled particle retention is required.
Plain weave wire mesh typically has a more regular arrangement of wires that forms identifiable openings. Dutch weave uses a different wire arrangement and a denser structure, making it suitable for certain fine-filtration applications. The appropriate choice depends on the required filtration performance and flow characteristics.

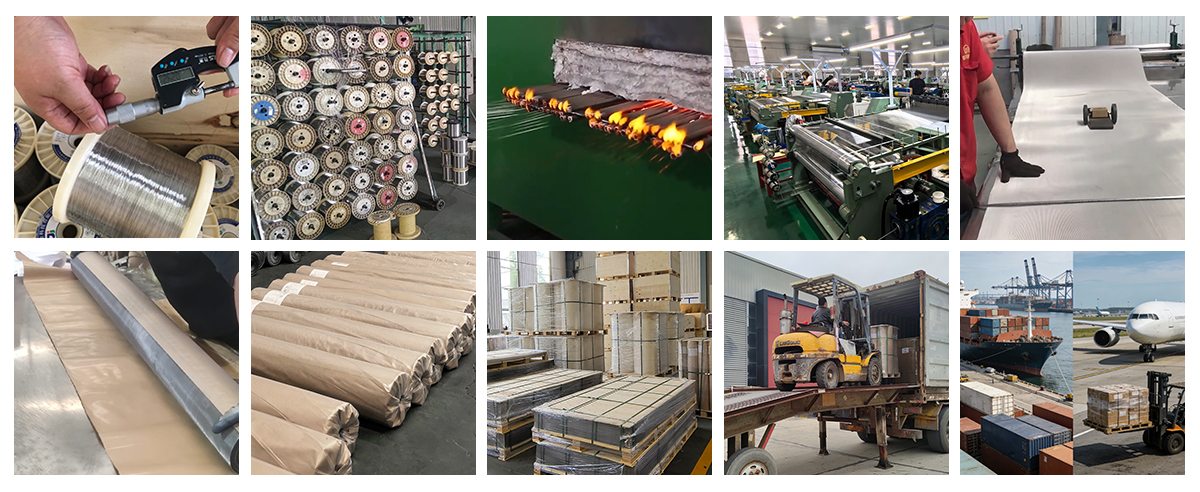

Yes. Rolls and cut sheets can be supplied according to the selected specification and manufacturing feasibility. Please provide the required dimensions and intended use when requesting a quotation.
Customization can be discussed for material, warp and weft wire diameters, weave configuration and product dimensions. Available options depend on the selected specification and production feasibility.
Please provide the material preference, weave configuration if known, target filtration rating, chemical medium, operating conditions, roll or sheet dimensions and estimated order quantity. A drawing, technical specification or existing sample can also help clarify your requirements.
