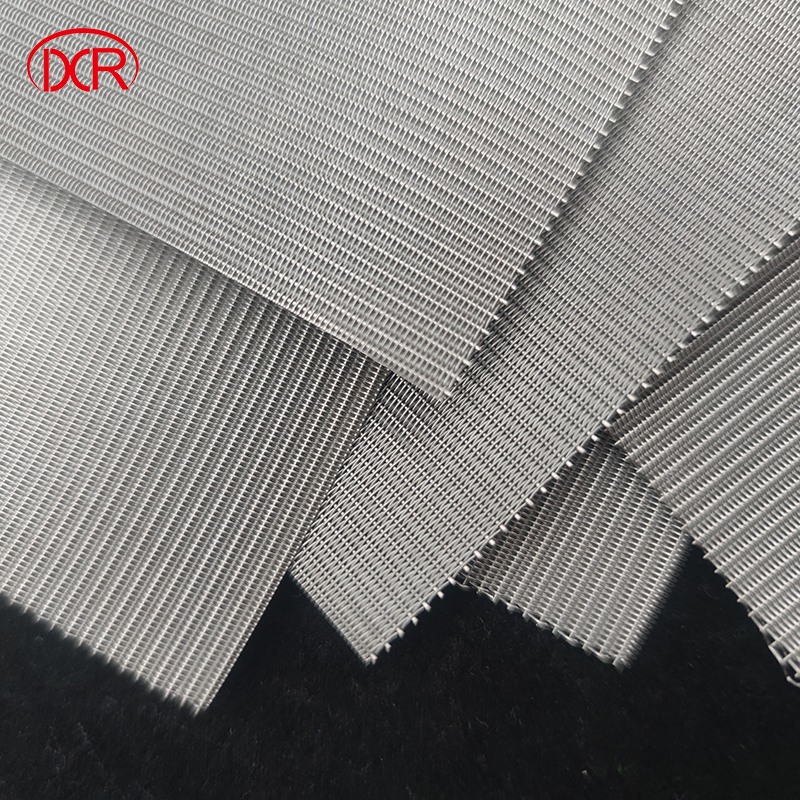

304 Stainless Steel 24×110 Dutch Weave Wire Mesh
304 Stainless Steel 24×110 Dutch Weave Wire Mesh
The 304 Stainless Steel 24×110 Dutch Weave Wire Mesh is a precision woven filter cloth designed for industrial filtration and particle separation. Its 24×110 weave configuration combines a relatively open supporting wire structure with finer filtration characteristics, making it suitable for applications where controlled particle retention and stable mechanical performance are both important.
This specification uses 304 stainless steel wire with warp and weft wire diameters of 0.355 × 0.25 mm. The nominal opening is approximately 0.105 mm (105 microns), with a finished weight of about 2.40 kg/m².
Compared with standard square woven mesh, Dutch weave construction creates a filtration-focused wire structure in which the opening is controlled by the interaction of different wire diameters and weaving densities. This makes the mesh a practical choice for industrial filter elements, separation media and customized filtration components.
Why Choose 24×110 Dutch Weave Wire Mesh?
How Does 24×110 Dutch Weave Mesh Work?
Dutch weave wire cloth is designed specifically around filtration rather than simply providing a uniform square opening.
The weaving arrangement uses heavier and finer wires in different directions. This creates a compact filtration surface with openings that are influenced by wire diameter, weaving density and the manufacturing process.
For engineers and purchasing teams, this means that the 24×110 designation should be considered together with the wire diameter and opening size.
For this product, the key filtration reference is approximately 105 μm nominal opening, while the 0.355 × 0.25 mm wire combination contributes to the strength and structure of the finished cloth.
Typical Industrial Applications

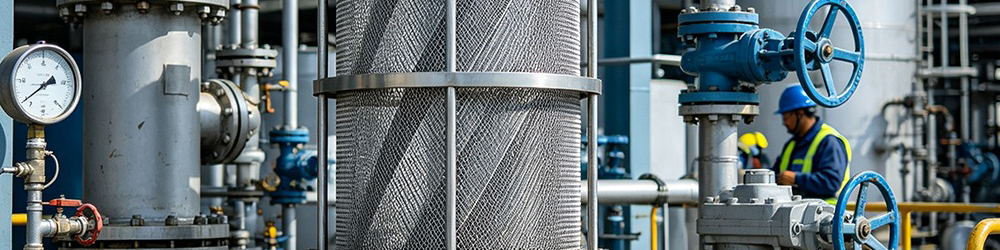

Oil and Hydraulic Filtration
The mesh can be incorporated into filter elements used for oil purification, hydraulic fluid filtration and the removal of unwanted solid particles from industrial fluids.

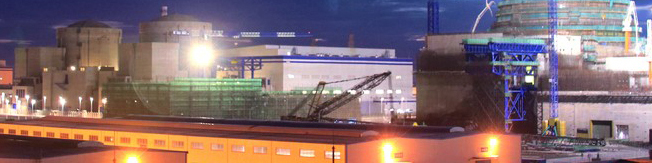

Chemical Processing
304 Dutch weave wire mesh can be used as a filtration medium in selected chemical processing applications where the working environment is compatible with 304 stainless steel.

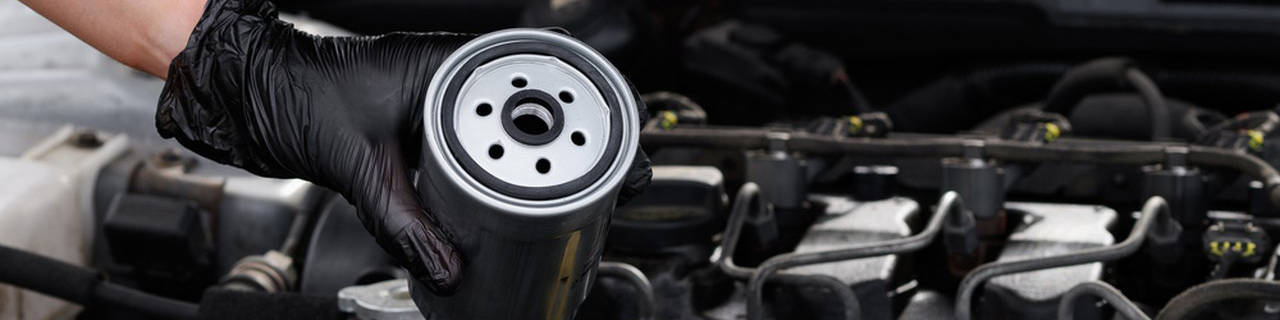

Fuel and Process Filtration
The controlled opening structure makes the mesh suitable for filtration assemblies where the separation of suspended particles is required during fluid processing.

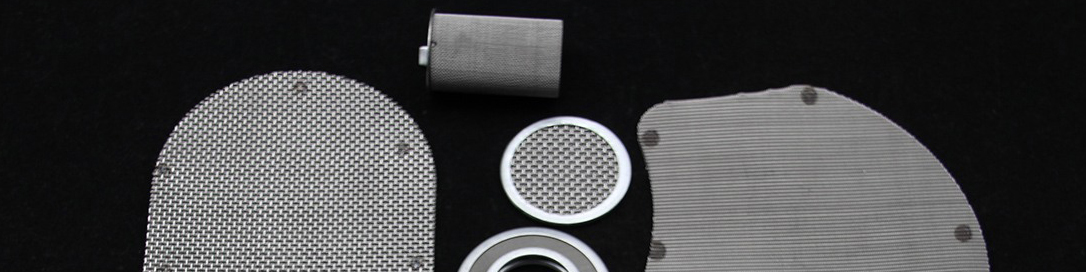

Industrial Filter Elements
The wire cloth can be fabricated into filter discs, cylinders, screens and other components for use in industrial filtration equipment.
Industrial Filter Elements
In addition to liquid filtration, Dutch weave cloth can be selected for fine particle separation where a defined opening and stable woven structure are required.
24×110 Dutch Weave vs. Standard Square Mesh
A standard plain-weave mesh normally uses similar wire diameters in both directions and forms a recognizable square aperture.
The 24×110 Dutch weave structure is different. It uses different wire diameters and weaving densities to create a filtration-oriented surface.
This distinction is important when selecting wire cloth for filtration equipment:
| Feature | 24×110 Dutch Weave | Standard Square Mesh |
| Main Purpose | Filtration | Screening / General separation |
| Wire Structure | Different wire diameters | Usually similar wire diameters |
| Opening Shape | Filtration-oriented opening | More uniform square opening |
| Filtration Use | High relevance | Depends on specification |
| Selection Method | Mesh + wire diameter + opening | Mainly mesh count + wire diameter |
The correct choice depends on the required particle size, pressure conditions, fluid characteristics and filter construction.
What Should You Consider Before Ordering?
Selecting Dutch weave wire mesh only by mesh count may lead to an unsuitable filter specification. Before ordering, confirm the following:
Determine the target particle retention or nominal opening size. This product has an opening of approximately 105 microns.
304 stainless steel is suitable for many general industrial environments, but the actual chemical composition, temperature and fluid conditions should be reviewed before material selection.
Tell us whether the mesh will be used as a flat screen, filter disc, filter tube, cylinder, multilayer filter pack or another component.
Pressure, temperature, flow rate, viscosity and the type of filtered medium can all affect the final mesh selection.
For customized components, provide drawings, dimensions, tolerances, edge treatment, welding requirements or other fabrication details where applicable.
Available Customization
DXR can provide customized wire mesh specifications according to application requirements.
Customization may include:
- Stainless steel material grades such as 304, 304L, 316 and 316L
- Mesh count and wire diameter
- Roll or sheet supply
- Cut-to-size filter cloth
- Filter discs
- Filter tubes and cylinders
- Welded or fabricated filter components
- Layered or laminated filter media
- Packaging and labeling according to customer requirements
For a custom quotation, provide the required mesh specification, dimensions, material, quantity and application information.
Stainless steel dutch weave wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high open surface area and good fireproof property.
Stainless steel dutch weave wire mesh products uses:
Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration
Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification and other drugs
Electronics: Circuit board framework, electronic components, battery acid, radiation module
Printing: Ink filtration, carbon filtration, purification and other toner
Equipment: vibrating screen
Specification of 24x110 Mesh Dutch Weave Wire Mesh
| Specifications | U.S. | Metric |
|---|---|---|
| Mesh Size | 24x110 per in | 24x110 per 25.4 mm |
| Wire Diameter | 0.0140x0.0098 in | 0.355x0.25 mm |
| Opening | 0.0041 in | 0.105 mm |
| Opening Microns | 105 | 105 |
| Weight / sq.m | 5.29 lb | 2.40 kg |
Advantages of stainless steel mesh
Good craft: the mesh of woven mesh is evenly distributed, tight and thick enough; If you need to cut the woven mesh, you need to use heavy scissors
High Quality Material: Made of stainless steel, which is easier to bend than other plates, but very strong. The steel wire mesh can keep arc, durable, long service life, high temperature resistance, high tensile strength, rust prevention, acid and alkali resistance, corrosion resistance and convenient maintenance.
what do we offer?
We are committed to providing customers in the metal industry with the best customer-centric services through high-quality products, competitive prices, reliable and fast delivery and stable supply capabilities, whether your requirement is large or small. 100% customer satisfaction is our ultimate goal.
1. Our products are all customized products, the price on the page is not the actual price, it is for reference only. Please contact us for the latest factory quotation if necessary.
2. We support samples and industry MOQ for quality testing.
3. Materials, specifications, styles, packaging, LOGO, etc. can be customized.
4. The freight needs to be calculated in detail according to your country and region, the quantity/volume of the goods, and the transportation method.
FAQ
24×110 identifies the mesh construction in the two directions of the woven cloth. For this specification, the product uses 0.355 mm and 0.25 mm stainless steel wires. Because Dutch weave mesh uses different wire configurations, the mesh count should always be evaluated together with wire diameter and nominal opening.
The nominal opening listed for this 304 stainless steel specification is approximately 0.105 mm, equivalent to 105 microns. Actual opening dimensions can be affected by manufacturing tolerances and the specific production process.
304 stainless steel is widely used for general industrial filtration because it combines corrosion resistance, mechanical strength and durability. However, the correct grade depends on the fluid, chemical concentration, temperature and service environment. More demanding corrosive applications may require 316 or 316L stainless steel.
Plain weave normally forms a more regular square opening and is commonly used for screening and general separation. Dutch weave uses a different wire arrangement and different wire diameters to create a structure that is particularly useful for filtration applications.
Yes. The woven cloth can be cut and processed into filter discs or other components according to the required diameter, shape and fabrication method. Custom dimensions should be confirmed before production.
Yes. Depending on the application, alternative stainless steel grades such as 304L, 316 and 316L can be evaluated. Material selection should be based on the corrosion environment and operating conditions.
Sample arrangements can be discussed for specification verification and application testing. The required mesh type, dimensions and sample quantity should be confirmed with the sales team.
Send the required material, mesh specification, width, length or component dimensions, quantity and intended application. For filter components, drawings or existing sample information can also help us determine the appropriate fabrication method.
