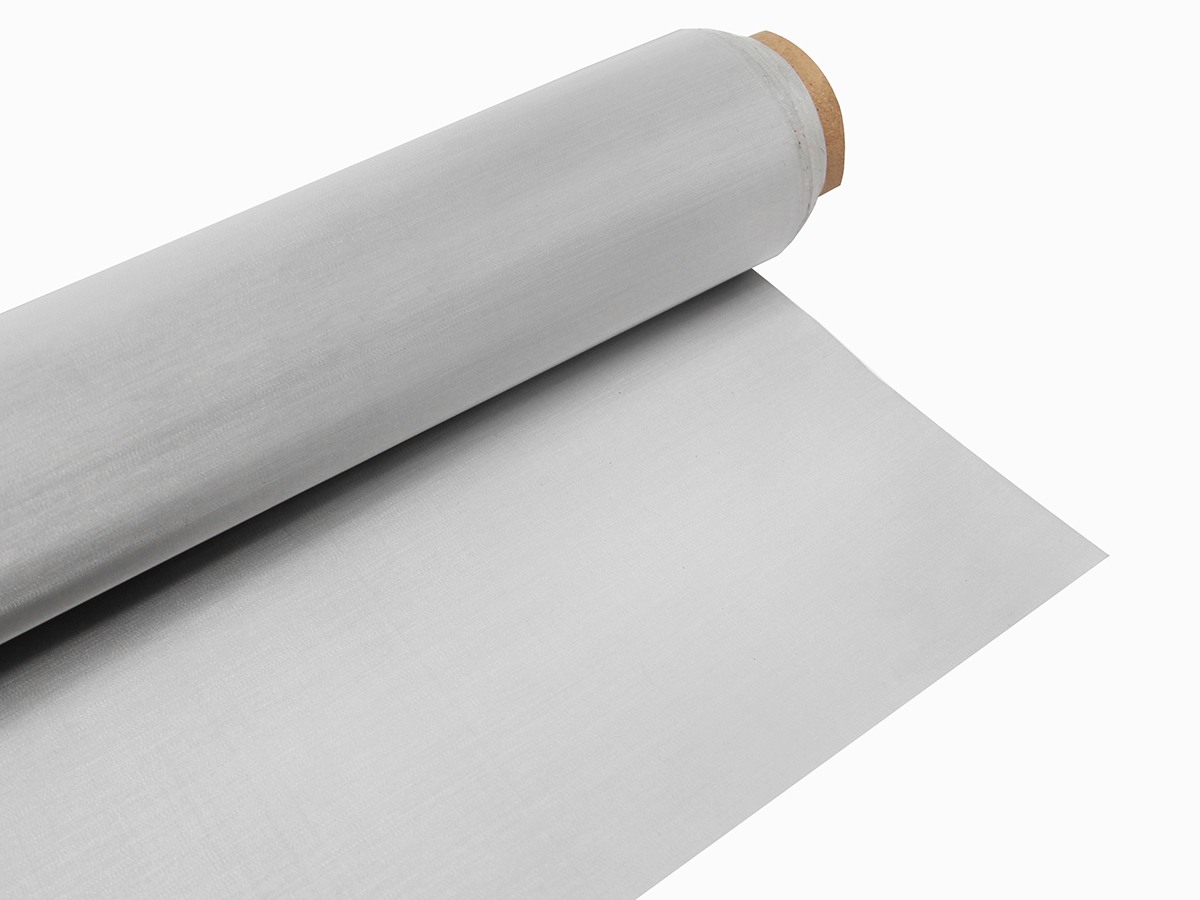

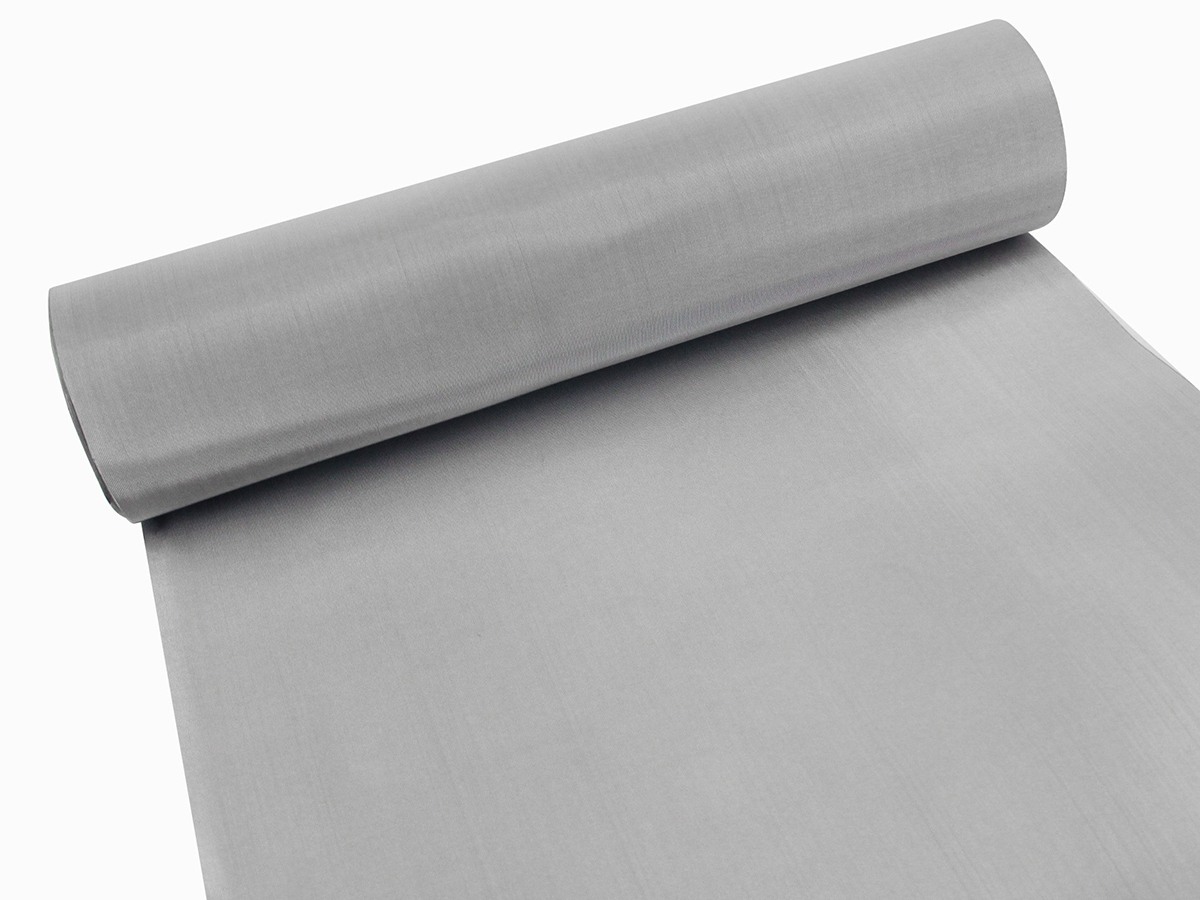

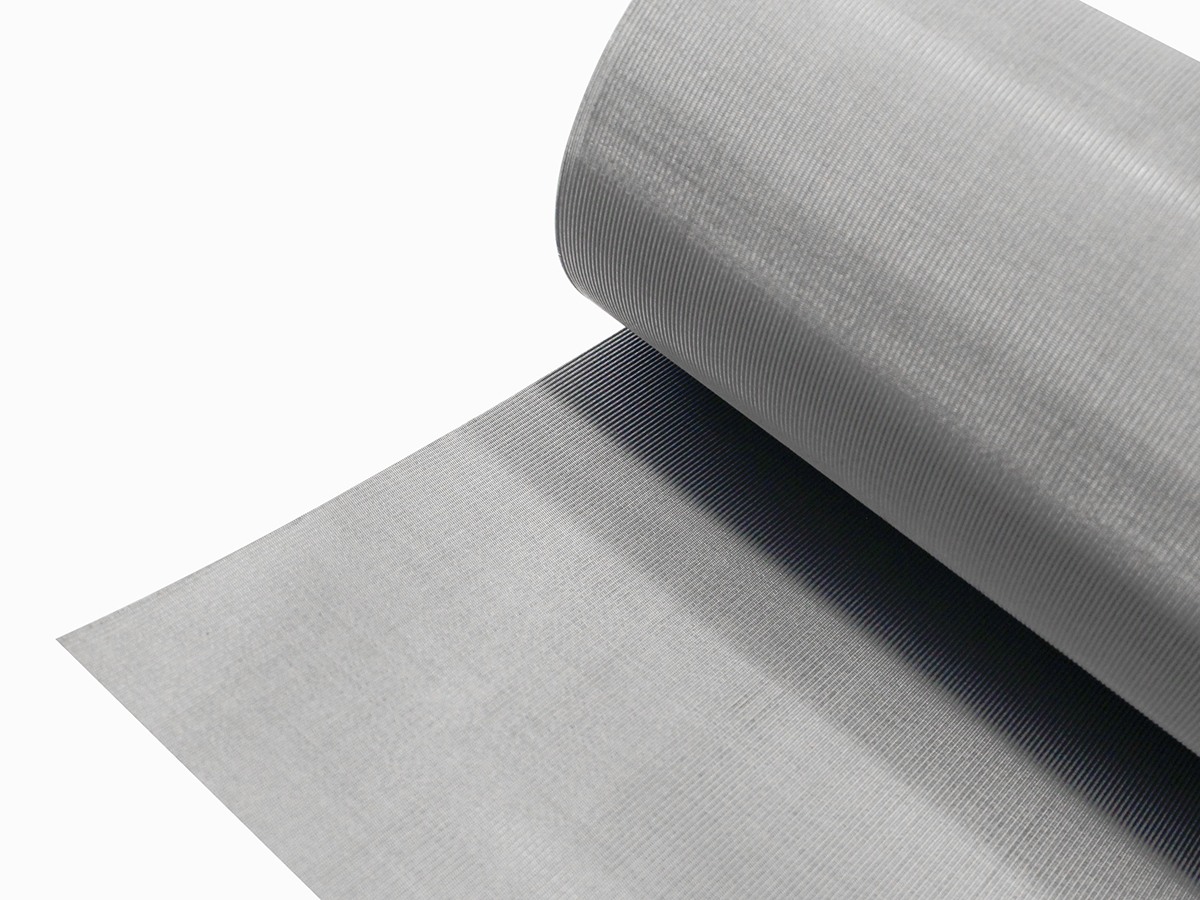

316 SS Dutch Weave Wire Mesh For Oil Filtration
Product Specifications
| Material | 304 / 316 Stainless Steel |
| Weave Type | Plain Dutch / Twill Dutch / Reverse Dutch |
| Filtration Rating | 5 – 200 micron |
| Width | Up to 2000 mm |
| Roll Length | Customization Available |
| Temperature Resistance | Up to 500°C |
| Surface Treatment | Industrial standard |
Industrial Precision Filtration Mesh Manufacturer
316 stainless steel Dutch weave wire mesh is a high-performance industrial filtration material specially designed for oil filtration, chemical processing, and high-pressure hydraulic systems.

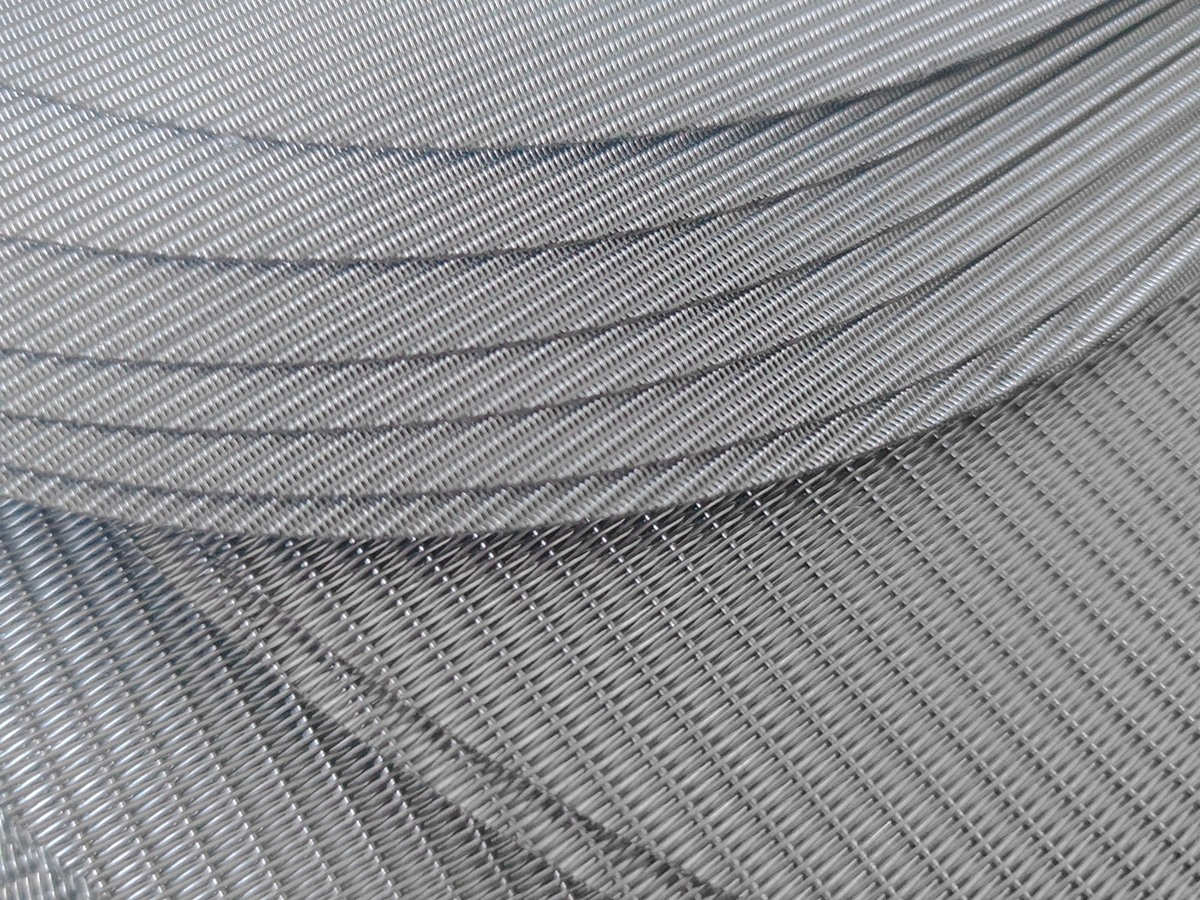

Unlike ordinary woven mesh, Dutch weave structure features high warp wire density and strong mechanical stability, providing superior filtration efficiency under high-pressure working environments.
As a professional industrial filtration mesh manufacturer in China, we support customized micron rating, width, and roll length production.

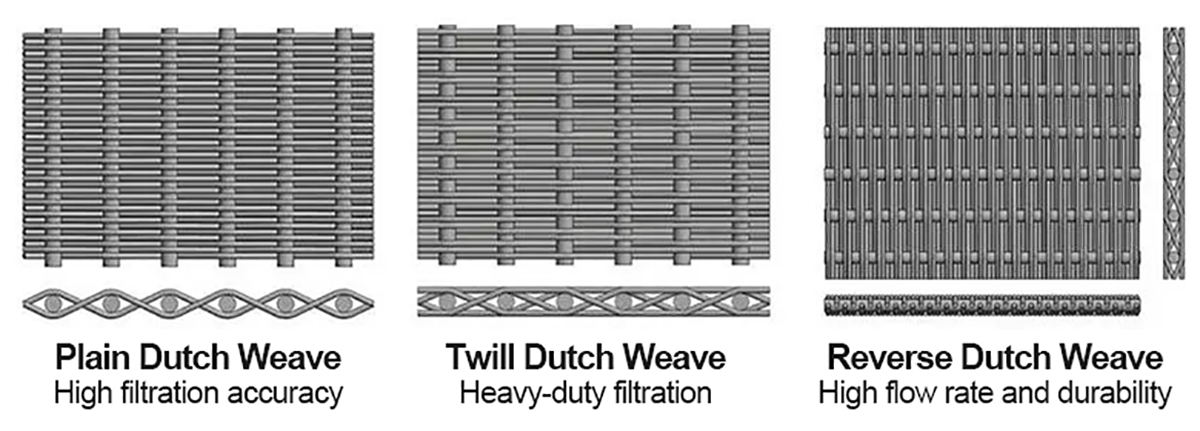

Weave Type Introduction And Selection Guide
Three Dutch weave types cover different precision and pressure requirements for fast, accurate product selection:
|
Weave Type
|
Filtration Range
|
Core Structural And Performance Features
|
Best Application Scenarios
|
|---|---|---|---|
|
Plain Dutch Weave
|
20 – 200 μm
|
Uniform and stable mesh aperture, balanced fluid permeability and filtration efficiency, moderate structural density and pressure resistance, not easy to block, excellent comprehensive stability.
|
Conventional industrial oil filtration, medium-pressure hydraulic systems, general lubricating oil purification, and scenarios requiring balanced flow rate and filtration precision.
|
|
Twill Dutch Weave
|
10 – 100 μm
|
Denser woven structure and higher tensile strength than plain Dutch weave, outstanding pressure and deformation resistance, stable performance under long-term continuous high-pressure impact.
|
Fine oil filtration, high-pressure hydraulic circulation systems, petroleum intermediate filtration, and continuous-duty industrial filtration equipment.
|
|
Reverse Dutch Weave
|
5 – 50 μm
|
Optimized warp-weft matching structure with finer and more uniform apertures, ultra-high filtration precision, good backwashing resistance, stable ultra-fine interception effect.
|
Ultra-fine precision filtration, chemical liquid purification, high-end petroleum refining filtration, and high-cleanliness industrial fluid filtration equipment.
|
Which applications can use our 316 SS Dutch Weave Wire Mesh?
This 316 Dutch weave mesh serves precision filtration needs across industries, delivering stable performance in complex oil, chemical, marine and high-temperature environments:
• Hydraulic oil filtration and impurity removal for mechanical equipment
• Lubricating oil system purification and precision filtration

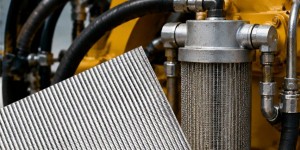

• Petroleum refinery crude oil and finished oil filtration
• Lubricating oil system purification and precision filtration
• Petroleum refinery crude oil and finished oil filtration
• Polymer liquid filtration and impurity separation
• Purification and fine filtration of corrosive chemical liquids
• Circulating filtration of chemical reaction solutions
• Seawater filtration and desalination pre-filtration system
• Marine hydraulic equipment oil filtration (anti-chloride corrosion)
• High-temperature flue gas and thermal oil filtration equipment
• Circulating fluid filtration for power generation auxiliary systems
We focus on industrial filtration solutions rather than low-quality price competition.
