Stainless Steel Plain Weave Wire Mesh for Industrial Filtration

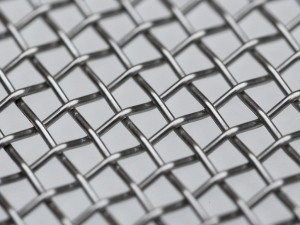

Stainless steel plain weave wire mesh

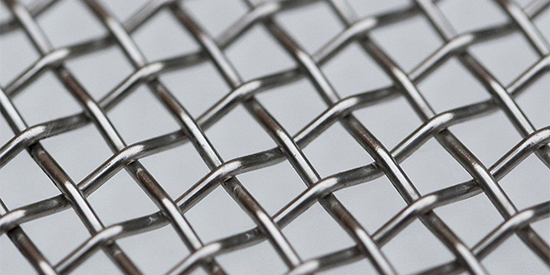

Stainless steel plain weave wire mesh is manufactured by weaving stainless steel wires in a simple over-under pattern. This structure ensures uniform openings, good dimensional stability and reliable mechanical strength, making it suitable for a wide range of industrial applications.
| Parameter | Range |
| Material | SS304, SS304L, SS316, SS316L |
| Weave Type | Plain Weave |
| Mesh Count | 1–635 mesh |
| Wire Diameter | 0.025 mm – 3.5 mm |
| Filtration Rating | 5 μm – 200 μm |
| Standard Width | 190 / 915 / 1,000 / 1,245 / 1,550 mm |
| Standard Length | 30 m / 30.5 m, cut-to-length available |
| Standards | ASTM E2016, ISO 9044 |
| Documentation | Material certificate and test report on request |
Each batch of stainless steel wire mesh undergoes strict inspection, including material verification, mesh count measurement, aperture inspection, tensile strength testing and finished product inspection to ensure consistent quality.
-
• Custom mesh count and wire diameter
-
• Cutting to size
-
• Punching and forming
-
• Welding and edge treatment
-
• OEM and ODM services
The filtration rating depends on mesh count and wire diameter. A finer mesh with smaller wire diameter produces a lower micron rating, while a coarser mesh provides higher flow and easier cleaning.
SS304 plain weave mesh offers a practical balance of corrosion resistance and mechanical strength for general filtration. SS316L provides higher resistance to chlorides, marine environments, and elevated temperatures, making it suitable for chemical processing, pharmaceutical production, and offshore applications.

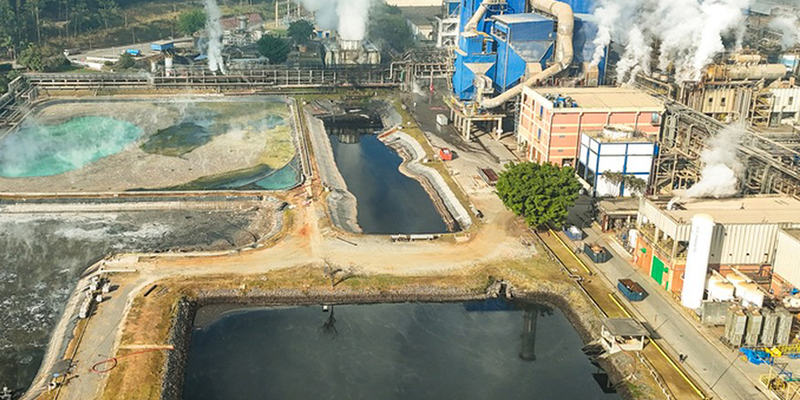

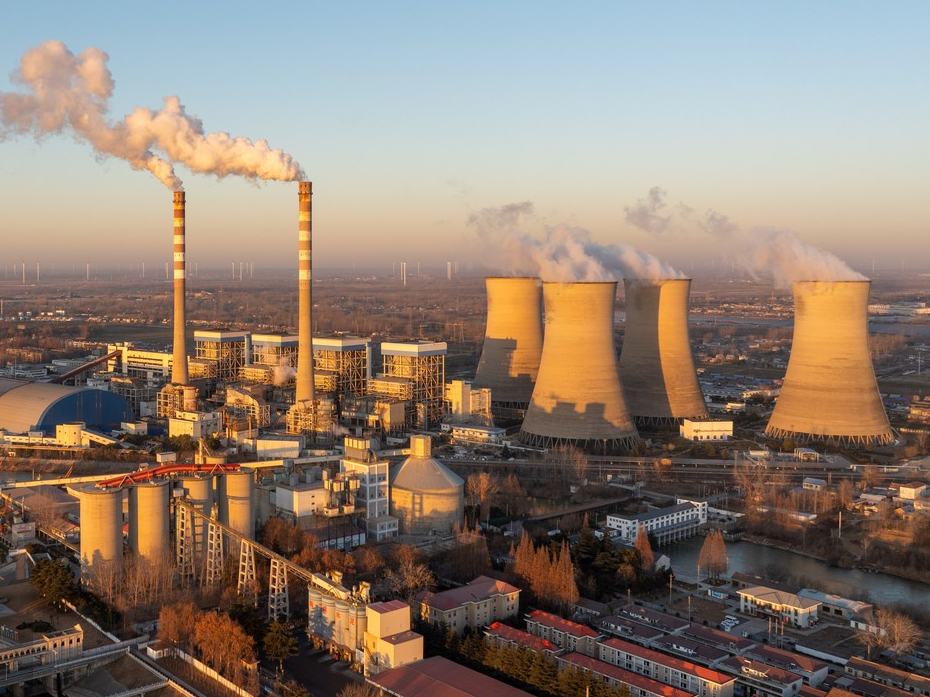

Applications
• Chemical and Petrochemical
Catalyst recovery, acid filtration, gas/liquid separation, and reactor internals.
• Pharmaceutical and Biotechnology
Cell retention, sterile venting, powder classification, and autoclave-cleanable filtration screens.
• Food and Beverage
Flour sifting, sugar screening, edible oil clarification, and juice filtration.
• Oil and Gas
Shale shaker screens, refinery pre-filtration, and fuel nozzle protection.
• Water Treatment
Membrane pre-filtration, sand control, and support layers in multi-media filters.
Plain Weave vs Twilled Weave
Choose plain weave when you need uniform apertures, easy cleaning, and predictable flow. Choose twilled weave when you need a finer filtration rating at the same wire diameter, or when the application requires higher dirt-holding capacity. Plain weave is generally easier to inspect and reuse, while twilled weave is denser but more difficult to clean.

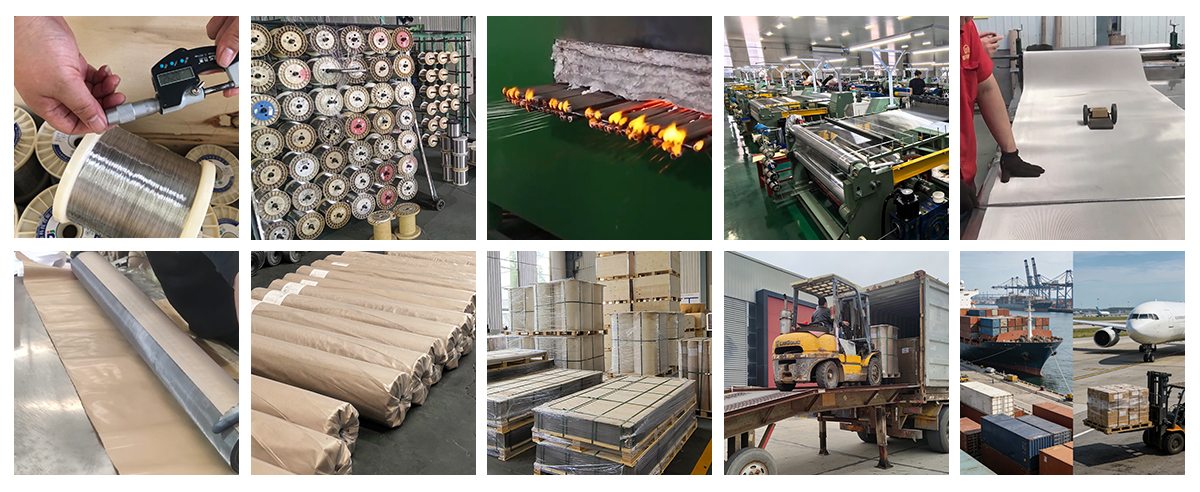

How our mesh is made？
Weaving stainless steel wire cloth is closer to textiles than to metalworking. Wire is not cut and joined; it is interlaced under tension, and most quality problems trace back to tension rather than to the alloy. Our process is built around holding that tension steady from the first pick to the last.
30+years production experience
DXR Wire Mesh is a manufacturing & trading combo of wire mesh and wire cloth in the China.With a track record of over 30 years of business and a technical sales staff with over 30 years of combined experience.
Our Products
DXR's main products are stainless steel wire mesh, filter wire mesh, titanium wire mesh,copper wire mesh, plain steel wire mesh and all kinds of mesh further-processingproducts. Total 6 series, about thousand types of products, widely applied forpetrochemical, aeronautics and astronautics, food, pharmacy, environmentalprotection, new energy, automotive and electronic industry.
In 1988,DeXiangRui Wire Cloth Co, Ltd. was foundedannual value of production is about 30 million US dollars.of which 90% of products delivered to more than 50 countries and regions. DXR brand as a famous brand inHebei Province has been registered in 7 countries aroundthe world for trademark protection.
Customers and Exhibitions
Inside The Factory
Workshop
Production Machine
