Stainless Steel Wire Mesh For Filtration 304 316 316L Fine Woven Wire Cloth
304 316 316L Fine Woven Wire Cloth For Filtration
Stainless steel wire mesh for filtration is a precision woven metal mesh widely used in industrial filtration and sieving applications. It is manufactured from high-quality stainless steel wires such as 304, 316 and 316L through advanced weaving technology, ensuring uniform mesh openings and stable filtration performance.
Due to its excellent corrosion resistance, high strength and durability, stainless steel woven wire cloth is suitable for filtering liquids, gases and fine particles in various industries. The mesh structure provides reliable filtration accuracy and long service life even in harsh working environments.
Technical Specification
| Material | Stainless Steel Wire |
| Weaving Method | Plain Weave, Twill Weave, Dutch Weave |
| Mesh Count | 20 mesh - 500 mesh |
| Wire Diameter | 0.02 mm - 1.2 mm |
| Mesh Opening | 0.025 mm - 1.2 mm |
| Width | 0.5 m - 2.0 m |
| Roll Length | 10 m - 30 m or customized |
| Surface Treatment | Natural bright surface |
| Filtration Accuracy | 25 micron - 1000 micron |
| Edge Type | Raw Edge, Wrapped Edge |
| Temperature Resistance | Up to 800°C |
| Corrosion Resistance | Excellent corrosion and oxidation resistance |
| Application | Industrial filtration, liquid filtration, oil filtration, chemical filtration, water treatment |
| Supply Form | Rolls, sheets, filter discs, customized shapes |
| Packaging | Waterproof paper, plastic film, wooden case, pallet |
| Customization | Available according to drawings or specifications |
| Place of Origin | Hebei, China |

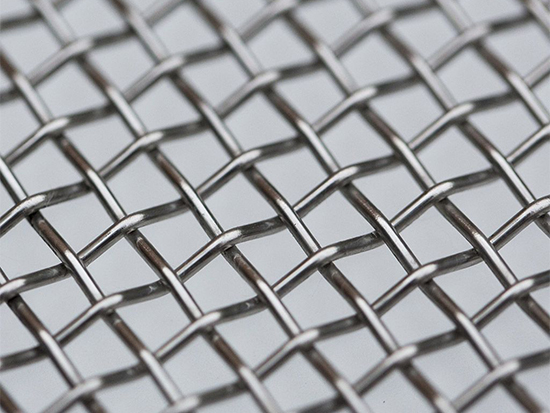

Plain weave is the most common and widely used weaving method for stainless steel wire mesh. In this structure, each warp wire alternately passes over and under each weft wire, forming a simple and uniform square mesh pattern.
This type of weave provides good stability, accurate mesh openings and a smooth surface. Because of its balanced structure, plain weave mesh is suitable for general filtration and sieving applications.
Features

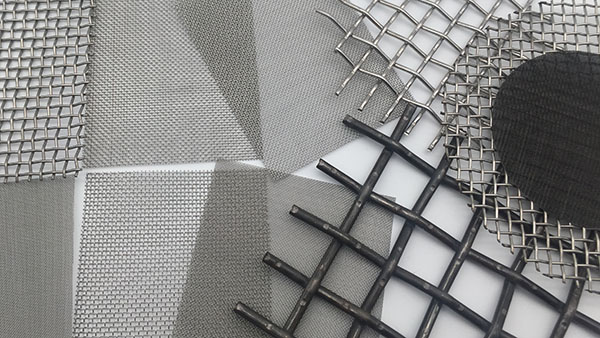

- Uniform and precise mesh openings
- Stable and strong structure
- Smooth mesh surface
- Easy to clean and maintain
Typical Applications
- Industrial filtration
- Liquid filtration
- Particle sieving
- Food processing filtration
- Laboratory filtration

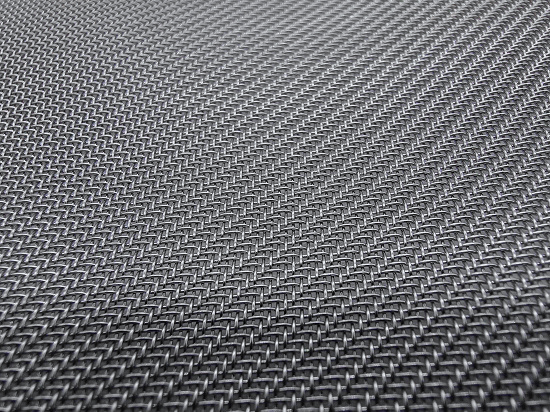

Twill weave is produced when each warp wire passes over two weft wires and then under two weft wires. This pattern creates a diagonal structure that allows the mesh to use thicker wires while still maintaining a high mesh count.
Compared with plain weave, twill weave wire mesh offers higher strength and better wear resistance. It is commonly used for heavy-duty filtration or applications that require stronger mesh structures.
Features
- Higher strength and durability
- Better wear resistance
- Suitable for finer mesh counts with thicker wires
- Stable filtration performance
Typical Applications
- Industrial filtration systems
- Heavy-duty screening
- Plastic and polymer filtration
- Chemical processing filtration
Dutch weave wire mesh is designed specifically for filtration applications. In this weaving structure, the warp wires are relatively thicker while the weft wires are finer and closely spaced, forming a dense filtration layer.
Unlike plain or twill weave meshes, Dutch weave does not form square openings. Instead, it creates a compact structure that offers very high filtration accuracy and excellent particle retention capability.
Features
- High filtration precision
- Strong mechanical strength
- High pressure resistance
- Ideal for fine filtration
Typical Applications
- Oil and fuel filtration
- Chemical filtration
- Hydraulic systems
- Polymer extrusion filtration
High-precision industrial filtration

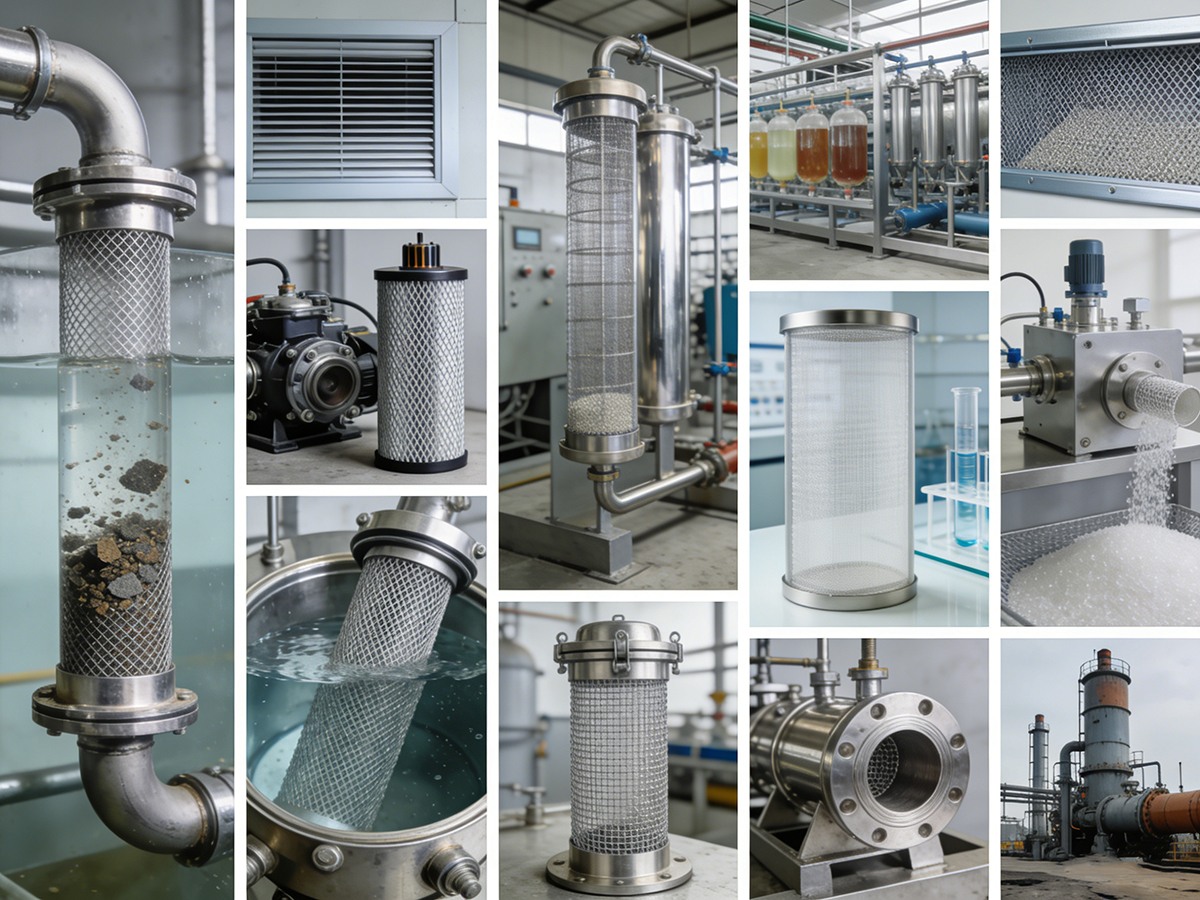

The application of stainless steel wire mesh
Stainless steel filtration mesh is widely used in many industrial filtration processes, including:
✔ Chemical liquid filtration
✔ Oil and fuel filtration systems
✔ Water treatment filtration
✔ Food and beverage processing filtration
✔ Pharmaceutical filtration
✔ Plastic and polymer filtration
✔ Air filtration systems
✔ Petroleum and refining industry filtration
Quality Control
Strict wire diameter inspection
Mesh count accuracy testing
Tensile strength testing

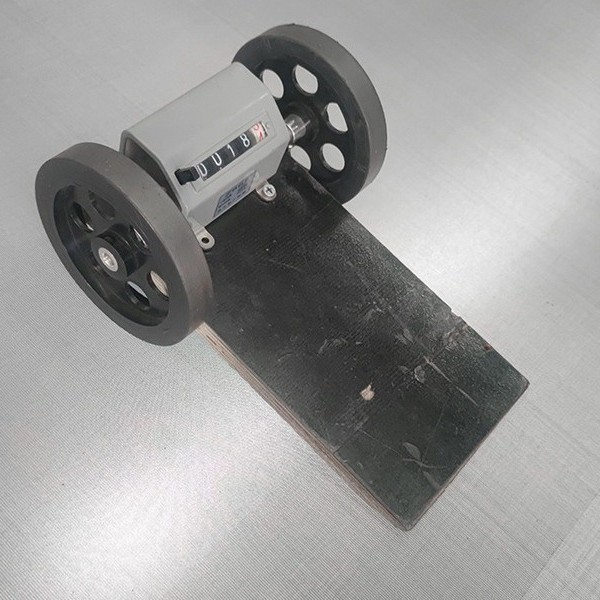

Surface quality inspection
Stainless Steel Wire Mesh Features
✔ High filtration precision with uniform mesh openings
✔ Excellent corrosion resistance in chemical environments
✔ Strong mechanical strength and durability
✔ High temperature resistance
✔ Smooth mesh surface for stable filtration performance
✔ Long service life and reusable structure
Packaging and transportation
Custom packaging is also available according to customer requirements.

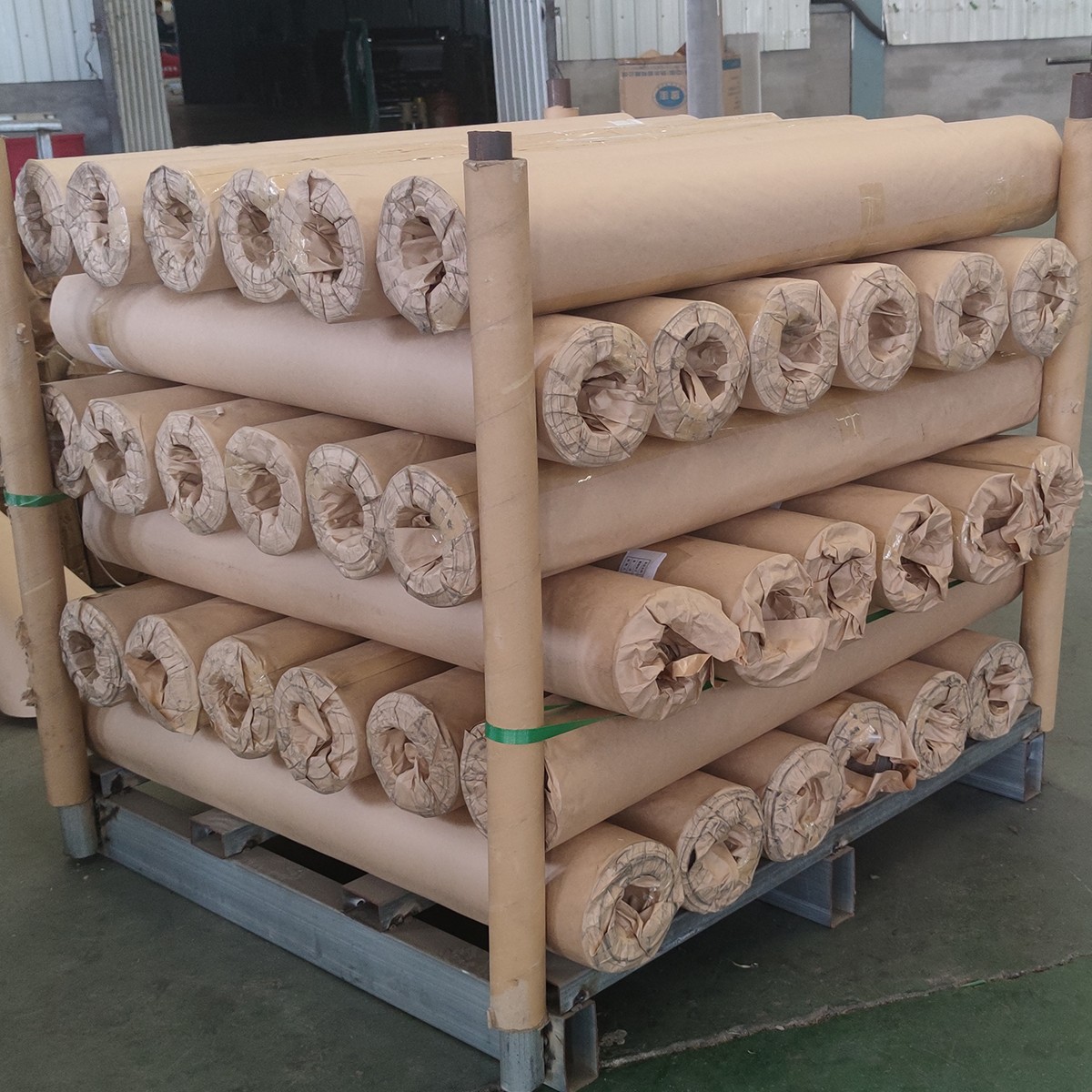

Moisture-proof paper wrapping
Plastic film protection

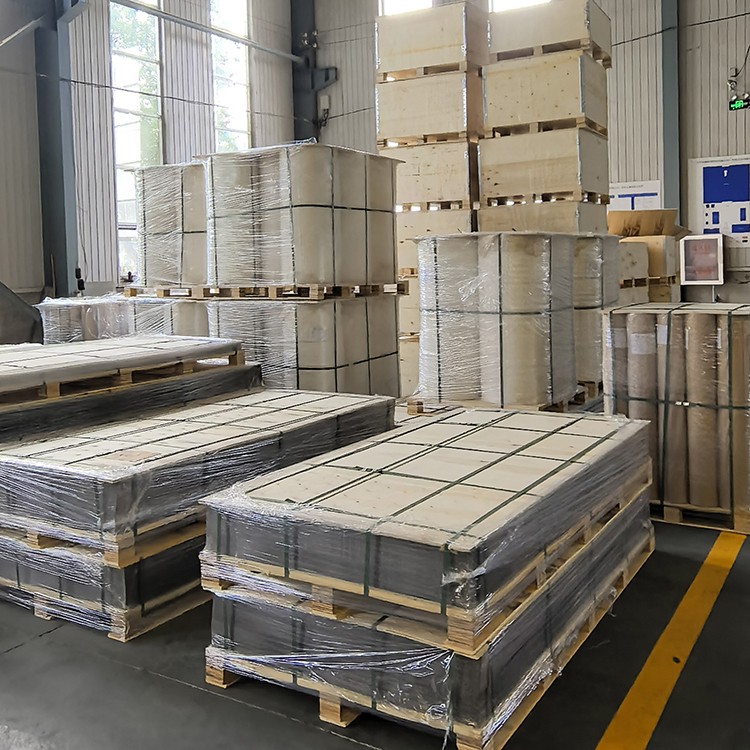

Wooden pallet or carton packing
Sea freight and air freight supported
Why Choose Us
✔ 30+ years wire mesh manufacturing experience
✔ Professional mining screening mesh production
✔ OEM and customized design service
✔ Fast production and delivery
✔ Exported to South America, Europe and Middle East
Inside The Factory
Workshop
Production Machine
How To Order
Please send us your specification, Our technical team will reply within 12 hours. Including:
FAQ
Stainless steel 304 is commonly used for general filtration applications, while 316 and 316L provide better corrosion resistance in chemical and marine environments.
Fine filtration usually uses mesh counts from 100 mesh to 500 mesh depending on the required filtration precision.
Yes, we can customize mesh count, wire diameter, width and roll length according to customer specifications.
It is widely used in chemical processing, petroleum filtration, water treatment, food processing and pharmaceutical industries.
